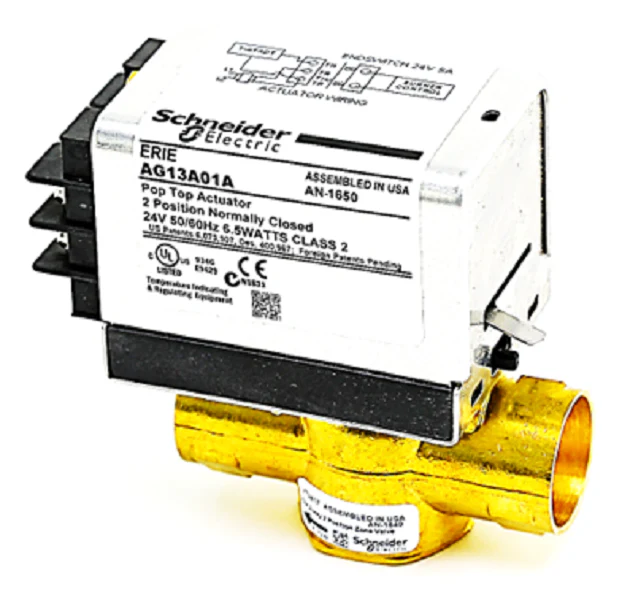

Schneider Electric (Erie) VT2417G13A01A Valve Assembly
The Schneider Electric (Erie) VT2417G13A01A Valve Assembly is a professional-grade two-position zone valve engineered for precise control in closed hydronic heating and cooling systems. This two-way normally closed assembly features a 1-inch sweat connection and a robust forged brass body rated for 300 PSI static pressure. Designed with the veteran technician in mind, the Erie PopTop system allows for tool-less actuator removal, simplifying maintenance and installation in tight mechanical spaces such as fan coils and baseboard heaters. The synchronous motor provides a reliable spring return fail-safe operation, ensuring the valve defaults to the closed position during power loss. With a 7.5 Cv flow capacity and a 17 PSI close-off rating, this 24Vac zone valve handles hot or chilled water and up to 50% glycol solutions effectively. The integrated terminal block and end switch allow for seamless interfacing with circulator pumps or boiler controllers, providing a definitive signal when the valve reaches the fully open position.
Key Benefits- PopTop Quick Release: The tool-less actuator mounting allows for rapid replacement without draining the system or breaking pipe connections.
- Fail-Safe Reliability: The spring return mechanism ensures the system returns to a safe normally closed state if power is interrupted.
- Direct Automation: An integrated SPDT end switch provides a dry contact signal to fire the boiler or activate a pump only when the valve is open.
- Rugged Construction: Features a forged brass body, nickel-plated stem, and a BUNA N paddle for compatibility with various hydronic media.
- High Flow Performance: A 7.5 Cv rating ensures minimal pressure drop across the 1-inch ported assembly in high-demand zones.
Can the actuator be replaced without removing the valve body?
Yes, the Erie PopTop design is specifically engineered so the actuator can be snapped off and replaced without disturbing the plumbing or the sweat connections.
What is the purpose of the manual override lever?
The manual lever allows the technician to manually open the valve for system flushing or filling during a power-off state; it automatically disengages once 24Vac power is restored.
Is this valve compatible with steam systems?
This specific model is rated for hot and chilled water applications. For low-pressure steam applications up to 15 PSI, a high-temperature "S" series body and actuator must be used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $147.69
-65%$147.69
$51.69Schneider Electric (Erie) VT2417G13A01A Valve Assembly
The Schneider Electric (Erie) VT2417G13A01A Valve Assembly is a professional-grade two-position zone valve engineered for precise control in closed hydronic heating and cooling systems. This two-way normally closed assembly features a 1-inch sweat connection and a robust forged brass body rated for 300 PSI static pressure. Designed with the veteran technician in mind, the Erie PopTop system allows for tool-less actuator removal, simplifying maintenance and installation in tight mechanical spaces such as fan coils and baseboard heaters. The synchronous motor provides a reliable spring return fail-safe operation, ensuring the valve defaults to the closed position during power loss. With a 7.5 Cv flow capacity and a 17 PSI close-off rating, this 24Vac zone valve handles hot or chilled water and up to 50% glycol solutions effectively. The integrated terminal block and end switch allow for seamless interfacing with circulator pumps or boiler controllers, providing a definitive signal when the valve reaches the fully open position.
Key Benefits- PopTop Quick Release: The tool-less actuator mounting allows for rapid replacement without draining the system or breaking pipe connections.
- Fail-Safe Reliability: The spring return mechanism ensures the system returns to a safe normally closed state if power is interrupted.
- Direct Automation: An integrated SPDT end switch provides a dry contact signal to fire the boiler or activate a pump only when the valve is open.
- Rugged Construction: Features a forged brass body, nickel-plated stem, and a BUNA N paddle for compatibility with various hydronic media.
- High Flow Performance: A 7.5 Cv rating ensures minimal pressure drop across the 1-inch ported assembly in high-demand zones.
Can the actuator be replaced without removing the valve body?
Yes, the Erie PopTop design is specifically engineered so the actuator can be snapped off and replaced without disturbing the plumbing or the sweat connections.
What is the purpose of the manual override lever?
The manual lever allows the technician to manually open the valve for system flushing or filling during a power-off state; it automatically disengages once 24Vac power is restored.
Is this valve compatible with steam systems?
This specific model is rated for hot and chilled water applications. For low-pressure steam applications up to 15 PSI, a high-temperature "S" series body and actuator must be used.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
