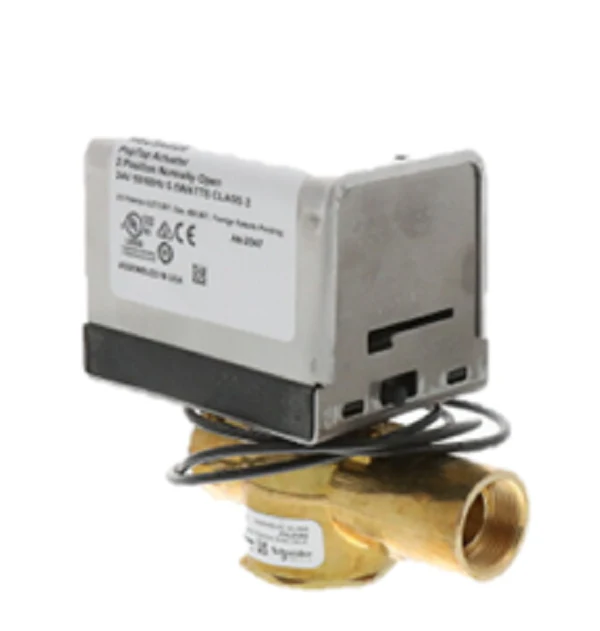

Schneider Electric (Erie) VT2343G23A020 Valve Assembly
The Schneider Electric (Erie) VT2343G23A020 is a heavy-duty two-way normally open zone valve designed for hydronic heating and cooling systems. This 24Vac spring return valve features a 3.5 Cv flow coefficient, ensuring efficient fluid regulation in high-demand environments. Built with a 3/4 inch inverted flare connection, it serves as a reliable retrofit zone valve for aging PopTop configurations. The two-position hydraulic control provides precise actuation, while the spring return mechanism ensures the valve defaults to the open position upon power loss, preventing system stagnation. Engineered for high-pressure hydronic systems, the VT2343G23A020 withstands the rigorous thermal cycling typical of commercial and residential HVACR applications. Contractors favor this Erie PopTop series for its modular design, allowing for quick actuator replacement without breaking the line. This low voltage zone valve integrates seamlessly with standard 24V thermostats and controllers, providing consistent performance and terminal unit regulation.
Key Benefits- Retrofit Ready: The inverted flare design allows for direct replacement in existing piping layouts without extensive brazing or modifications.
- Reliable Fail-Safe: The spring return normally open configuration is critical for freeze protection and maintaining flow during power interruptions.
- High Flow Efficiency: A 3.5 Cv rating minimizes pressure drop across the valve assembly, optimizing pump head requirements.
- Synchronous Motor Actuator: Delivers high torque for positive shut-off against high static pressures common in multi-story hydronic loops.
- Modular Construction: The PopTop quick-release button enables tool-free actuator removal, reducing labor time during field service.
Is the VT2343G23A020 compatible with general hydronic systems?
Yes, this 7000 series PopTop valve is designed for closed-loop hydronic systems using hot or chilled water with up to 50% glycol concentrations.
Can I replace the actuator without draining the system?
The Schneider Electric VT2343G23A020 features a two-position actuator that can be removed from the valve body without depressurizing the piping, facilitating rapid maintenance.
What is the maximum fluid temperature for this assembly?
This HVAC zone valve is rated for fluid temperatures ranging from 32°F to 200°F, making it suitable for most boiler and chiller applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $116.81
-65%$116.81
$40.88Schneider Electric (Erie) VT2343G23A020 Valve Assembly
