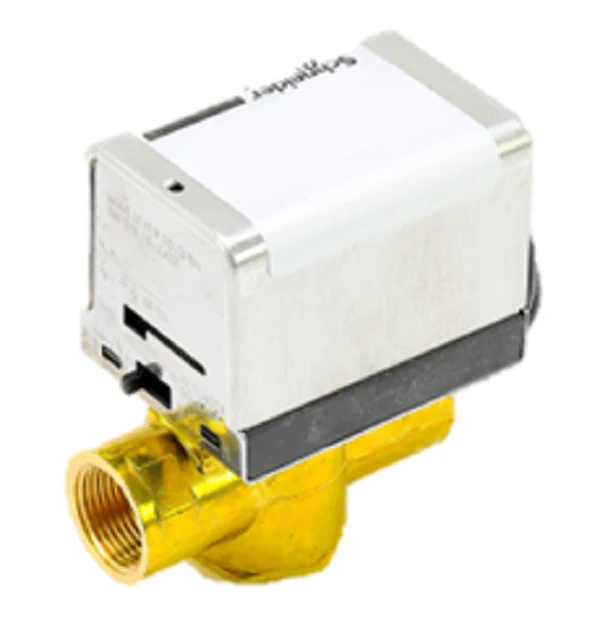

Schneider Electric (Erie) VT2323G23A020 Valve Assembly
For veteran HVAC contractors managing multi-zone hydronic systems, the Schneider Electric Erie VT2323G23A020 is a standard-setting two-way normally open zone valve assembly. Specifically engineered for hot and chilled water applications with up to 50% glycol, this 3/4 inch NPT unit provides reliable flow control with a 3.5 Cv flow coefficient. The 24Vac spring return mechanism ensures a dependable fail-safe, returning the valve to the open position during power loss to maintain system circulation and prevent stagnation.
Built with a forged brass body and the signature Erie PopTop actuator, the VT2323G23A020 allows for tool-free actuator replacement, drastically reducing service time on the job site. This two-position zone valve handles high static pressure up to 400 psi and fluid temperatures up to 200°F (93°C). The AG23A020 actuator utilizes a hysteresis synchronous motor for consistent torque and long-term performance in demanding commercial or residential fan coil and baseboard environments. Its on/off general close-off capability allows for precise terminal unit control without the complexity of external linkages or calibration.
Key Benefits for Technicians- Quick-Release PopTop Design: Allows for immediate actuator removal without draining the system or using specialized tools.
- Enhanced Fail-Safe Reliability: The normally open configuration and spring return action provide essential protection in hydronic loops.
- High Pressure Resilience: Forged brass construction is rated for 400 psi static pressure and a 25 psi close-off differential.
- Compact NPT Footprint: Standard 3/4 inch threaded connections ensure easy integration into existing pipe manifolds and tight mechanical closets.
Is the VT2323G23A020 suitable for steam applications?
No, this specific model is designed for hot and chilled water. For steam service, a VS series valve with high-temperature components must be used.
Can the actuator be installed in any orientation?
The valve and actuator can be mounted in various positions, but the actuator must never be tilted below 85 degrees from vertical to prevent condensation or debris from entering the motor housing.
Does this assembly include an end switch?
The VT2323G23A020 is a standard two-position setup. If your system requires an auxiliary SPDT end switch for signaling a pump or boiler, verify the specific actuator suffix before installation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
