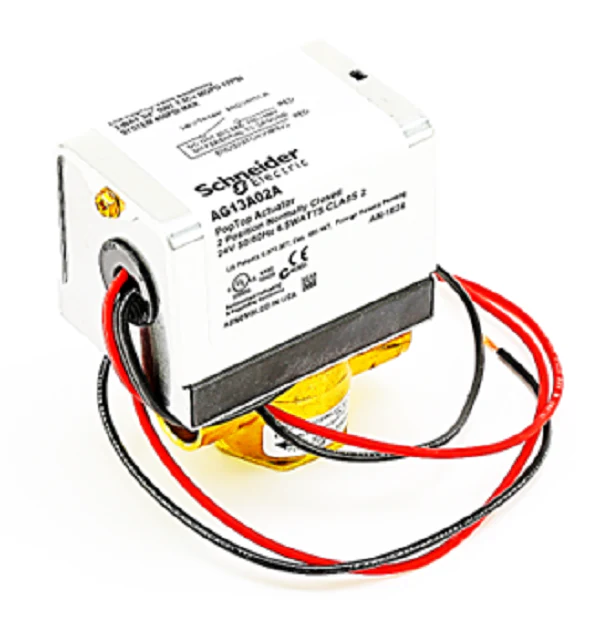

Schneider Electric (Erie) VT2317G13A02A Valve Assembly
The Schneider Electric (Erie) VT2317G13A02A Valve Assembly is a heavy-duty 2-way normally closed zone valve engineered for precision fluid control in closed hydronic systems. Featuring a high-capacity 7.5 Cv flow rate and a 3/4" sweat connection, this Erie PopTop zone valve ensures minimal pressure drop while managing hot or chilled water and technical glycol solutions up to 50%. The unit utilizes a 24Vac spring return actuator with a hysteresis synchronous motor, providing a fail-safe closure upon power loss. For advanced integration, the integrated SPDT end switch enables seamless signaling to burners or circulator pumps once the valve is fully engaged. Designed for rapid field service, the AG13A02A motorized actuator snaps onto the VT2317 valve body without tools or calibration, allowing for effortless maintenance without breaking the line. This assembly is rated for a static pressure of 400 psi and a close-off pressure of 17 psi, making it a reliable standard for professional HVAC contractors.
Key Benefits- Tool-less Actuator Removal: The iconic PopTop design allows the actuator to be replaced in seconds without draining the system.
- Fail-Safe Operation: Mechanical spring return ensures the valve returns to the normally closed position during power interruptions.
- System Feedback: Built-in auxiliary end switch provides positive confirmation for sequencing secondary equipment like pumps or boilers.
- Technical Endurance: Forged brass body and stainless steel base plate resist corrosion in demanding heating and cooling applications.
- Manual Override: Features an external lever to manually open the valve for system flushing or diagnostic bypass.
Can the VT2317G13A02A be used in steam applications?
No, this specific model is designed for hot and chilled water; for low-pressure steam up to 15 psi, a specialized VS series valve body and high-temperature actuator must be specified.
What is the proper mounting orientation for this Erie valve?
The valve can be installed in horizontal or vertical lines, but the actuator must never be mounted below the piping to prevent moisture or debris from entering the motor housing.
Does this assembly include the end switch wiring?
Yes, the unit comes equipped with 18-inch lead wires for both the 24V power input and the SPDT end switch contacts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $121.37
-65%$121.37
$42.48Schneider Electric (Erie) VT2317G13A02A Valve Assembly
The Schneider Electric (Erie) VT2317G13A02A Valve Assembly is a heavy-duty 2-way normally closed zone valve engineered for precision fluid control in closed hydronic systems. Featuring a high-capacity 7.5 Cv flow rate and a 3/4" sweat connection, this Erie PopTop zone valve ensures minimal pressure drop while managing hot or chilled water and technical glycol solutions up to 50%. The unit utilizes a 24Vac spring return actuator with a hysteresis synchronous motor, providing a fail-safe closure upon power loss. For advanced integration, the integrated SPDT end switch enables seamless signaling to burners or circulator pumps once the valve is fully engaged. Designed for rapid field service, the AG13A02A motorized actuator snaps onto the VT2317 valve body without tools or calibration, allowing for effortless maintenance without breaking the line. This assembly is rated for a static pressure of 400 psi and a close-off pressure of 17 psi, making it a reliable standard for professional HVAC contractors.
Key Benefits- Tool-less Actuator Removal: The iconic PopTop design allows the actuator to be replaced in seconds without draining the system.
- Fail-Safe Operation: Mechanical spring return ensures the valve returns to the normally closed position during power interruptions.
- System Feedback: Built-in auxiliary end switch provides positive confirmation for sequencing secondary equipment like pumps or boilers.
- Technical Endurance: Forged brass body and stainless steel base plate resist corrosion in demanding heating and cooling applications.
- Manual Override: Features an external lever to manually open the valve for system flushing or diagnostic bypass.
Can the VT2317G13A02A be used in steam applications?
No, this specific model is designed for hot and chilled water; for low-pressure steam up to 15 psi, a specialized VS series valve body and high-temperature actuator must be specified.
What is the proper mounting orientation for this Erie valve?
The valve can be installed in horizontal or vertical lines, but the actuator must never be mounted below the piping to prevent moisture or debris from entering the motor housing.
Does this assembly include the end switch wiring?
Yes, the unit comes equipped with 18-inch lead wires for both the 24V power input and the SPDT end switch contacts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
