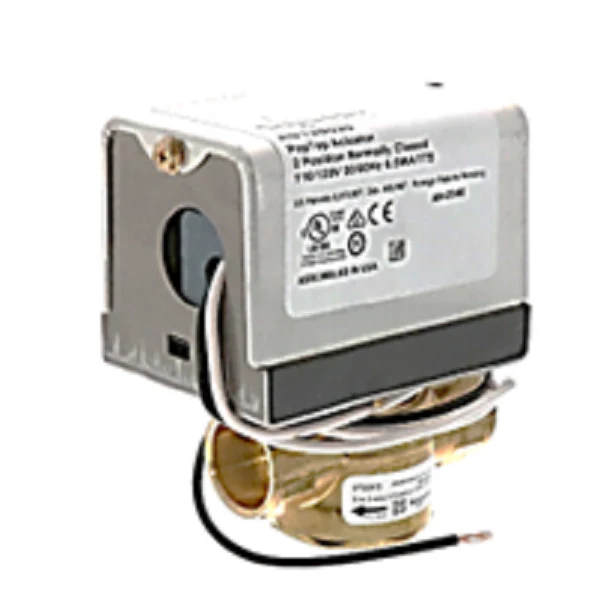

Schneider Electric (Erie) VT2313G13B020 Valve Assembly
The Schneider Electric (Erie) VT2313G13B020 is a heavy-duty 2-way normally closed zone valve assembly designed for reliable fluid control in closed-loop hydronic heating and cooling systems. Built around the industry-standard PopTop series architecture, this unit features a 3/4 inch sweat connection and is rated for a 3.5 Cv flow capacity, making it ideal for fan coil units, baseboards, and air handlers. The 120Vac synchronous motor and spring return mechanism provide a fail-safe operation, ensuring the valve remains closed upon loss of power to prevent unintended bypass or energy loss.
Constructed with a forged brass body and stainless steel stem, the VT2313G13B020 handles system static pressures up to 400 psi and fluid temperatures up to 200°F. The actuator facilitates rapid field maintenance with a tool-less, one-handed removal process that does not require draining the system. Professional contractors value the manual override lever for initial system flushing and manual positioning during power outages or startup.
- Fail-Safe Protection: Reliable spring return operation ensures a normally closed state during power loss.
- High Flow Efficiency: Optimized 3.5 Cv rating minimizes pressure drop in residential and light commercial zones.
- Contractor-Grade Durability: Forged brass construction and high-quality Buna-N paddle seating for long-term cycling.
- Streamlined Installation: 3/4" sweat connections and the PopTop mounting system save time on-site.
- Versatile Media Handling: Compatible with hot and chilled water as well as glycol solutions up to 50%.
Common Question Section
What is the maximum static pressure for the VT2313G13B020?
This valve is rated for a maximum static pressure of 400 psi, though the close-off pressure is typically rated at 25 psi for standard zone control applications.
Can I install the actuator before soldering the valve body?
No, the actuator must be removed prior to soldering. The heat from the 3/4" sweat installation can damage the motor and internal components. Use the manual lever to ensure the paddle is off the seat while soldering the body into the line.
Is this valve compatible with low-pressure steam?
The VT series is designed for water and glycol. For 15 psi steam applications, the VS series from the Schneider Erie catalog should be utilized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
