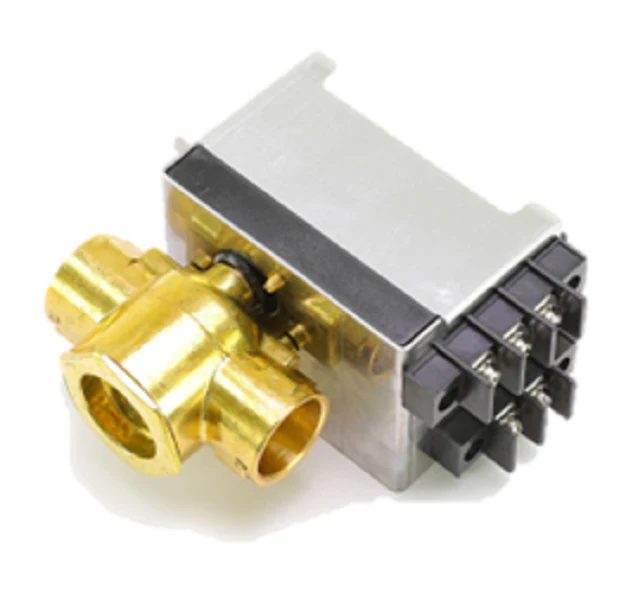

Schneider Electric (Erie) VT2313G13A01A Valve Assembly
The Schneider Electric (Erie) VT2313G13A01A is a commercial-grade two-way normally closed zone valve engineered for hydronic heating and cooling systems. This PopTop series valve features a 3/4-inch sweat connection and a 3.5 Cv flow coefficient, making it a reliable solution for controlling secondary loops and individual terminal units. Operating on a 24Vac power supply, the spring return actuator ensures fail-safe operation upon power loss. The inclusion of a terminal block and end switch allows for seamless integration into HVAC control systems, providing feedback for circulator pump sequencing. Designed for high-static pressure applications, this low-voltage zone valve utilizes a robust motor-driven mechanism to overcome differential pressure without the chattering common in lower-quality alternatives. Contractors prefer this Erie PopTop valve because the actuator can be replaced without draining the system, significantly reducing maintenance downtime. This 2-way N.C. valve assembly is optimized for use with water or glycol solutions in closed-loop configurations.
Key Benefits- Modular Design: The one-handed actuator removal feature allows for quick serviceability without disturbing plumbing connections.
- Integrated End Switch: Simplifies wiring installations by providing a dry contact to cycle pumps or boiler firing circuits.
- Fail-Safe Security: Reliable spring return functionality ensures the valve closes automatically during power interruptions to prevent overheating or freezing.
- High Differential Capability: Engineered to hold tight against high head pressures typical in multi-story hydronic layouts.
- Compact Footprint: Fits easily into tight mechanical closets and baseboard enclosures where space is at a premium.
Can the VT2313G13A01A be mounted in any orientation?
The valve body can be installed in horizontal or vertical piping, but the actuator should never be mounted below the center line of the pipe to prevent condensate from damaging the motor.
What is the maximum fluid temperature rating for this assembly?
This 3/4-inch sweat zone valve is typically rated for fluid temperatures ranging from 32°F to 200°F, making it suitable for both chilled water and hot water heating applications.
How do I manually override the valve during system filling?
The actuator includes a manual lever that allows the valve to be locked in the open position for system flushing or emergency operation during power loss.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
