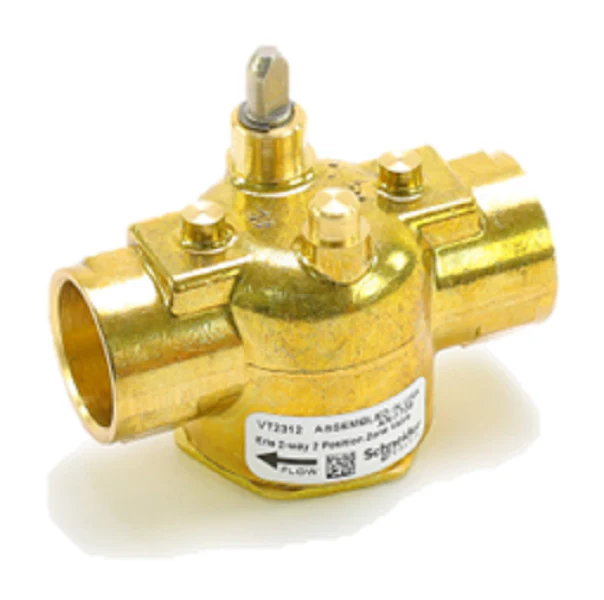

Schneider Electric (Erie) VT2312 Valve Body
The Schneider Electric (Erie) VT2312 Valve Body is a professional-grade two-way zone valve designed for precise flow control in hydronic heating and cooling systems. Built around the Erie PopTop platform, this 3/4" sweat connection valve body features a 2.5 Cv flow coefficient, making it ideal for fan coil units, baseboard heaters, and residential air handlers. Constructed from forged brass with a nickel-plated stem and a BUNA N paddle, the VT2312 ensures a bubble-tight close-off to prevent energy waste through bypass leakage. This two-position valve body is engineered for seamless integration with AG and AH actuators, providing technicians with a modular solution that allows for actuator replacement without draining the loop. Rated for static pressures up to 400 psi and operating fluid temperatures between 32° and 200°F, it maintains system efficiency in high-demand commercial and residential HVAC configurations.
Key Benefits- Quick-Open Characteristic: Provides immediate response for temperature control in two-position (on/off) hydronic loops.
- One-Handed Actuator Removal: The PopTop design allows for the actuator to be snapped on or off the valve body without tools or linkages, simplifying maintenance in tight mechanical closets.
- Durable Brass Trim: Forged brass body design is resistant to dezincification and ensures long-term performance with water or 50% glycol media.
- High Close-Off Pressure: Engineered to maintain a reliable seal against pump head pressure, preventing ghost flows in inactive zones.
- Serviceability: No need to cut the valve out of the line when an actuator fails; the body remains in place for standard service cycles.
Is the VT2312 compatible with steam applications?
No, the VT2312 is specifically designed for hot or chilled water and glycol solutions. For low-pressure steam up to 15 psig, the VS Series bodies should be utilized.
Which actuators can be paired with this 3/4" sweat valve body?
This body is compatible with all Schneider Electric Erie PopTop AG series (general purpose) and AH series (high pressure close-off) actuators.
Can this valve be installed in any orientation?
While the body can be mounted in various positions, the actuator must always be positioned above the horizontal plane of the pipe to prevent moisture damage from condensation or potential leaks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
