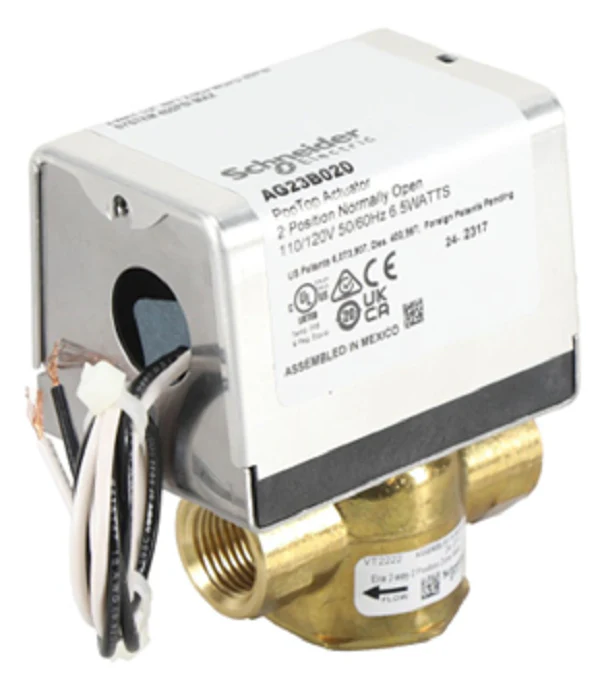

Schneider Electric (Erie) VT2222G23B020 Valve Assembly
The Schneider Electric (Erie) VT2222G23B020 Valve Assembly is a professional-grade two-position zone valve designed for demanding hydronic applications in heating and cooling systems. Built around the industry-standard Erie PopTop platform, this 120Vac 2-way normally open valve features a 1/2 inch NPT threaded connection and a 2.5 Cv flow coefficient. This specific configuration is engineered for high-reliability spring return operation, ensuring the valve returns to its open state upon power loss. The forged brass body and nickel-plated stem provide exceptional resistance to corrosion, making it a staple for contractors servicing fan coils, baseboards, and air handlers. Its unique pop-top actuator design allows for one-handed removal, significantly reducing labor time during field replacements or maintenance. This valve manages system static pressures up to 300 PSI and is compatible with water or glycol solutions up to 50% concentration.
Key Benefits:
- Simplified Installation: The Erie PopTop quick-release mechanism enables the actuator to be snapped onto the 1/2" NPT valve body without complex tools.
- Reliable Fail-Safe: Integrated spring return normally open logic ensures continuous flow for freeze protection or bypass requirements during power interruptions.
- Durable Construction: Heavy-duty forged brass body and 2-way NPT connection are built to withstand standard commercial and residential hydronic environments.
- Efficient Fluid Control: The 2.5 Cv rating provides optimized two-position control for consistent terminal unit performance and minimal pressure drop.
- Field Serviceable: Actuators can be replaced independently of the valve body, allowing technicians to troubleshoot 120V actuator issues without draining the system.
Common Questions:
How do I identify if the actuator is Normally Open?
The "G23" designation in the model VT2222G23B020 indicates a normally open configuration, meaning the valve remains in the open flow position when de-energized.
Can this valve be used in steam applications?
This Schneider Electric VT series model is rated for hot and chilled water; for steam applications, specialized high-temperature "VS" series bodies and actuators must be utilized.
What is the proper mounting orientation?
For optimal longevity, the valve should be mounted in horizontal or vertical piping, but the 120Vac actuator must never be tilted below 85 degrees from the vertical to prevent moisture ingress.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
