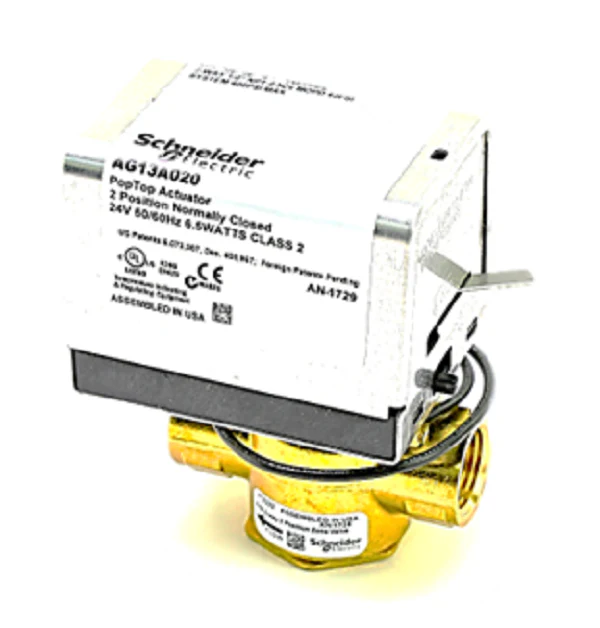

Schneider Electric (Erie) VT2222G13A020 Valve Assembly
The Schneider Electric Erie VT2222G13A020 is a heavy-duty 2-way normally closed zone valve designed for reliable flow control in hydronic systems. Featuring a 1/2 inch NPT connection and a 2.5 Cv flow coefficient, this 24Vac spring return valve is engineered for high-demand commercial and residential HVAC applications. The PopTop actuator design allows for quick removal and replacement without draining the system, significantly reducing labor time during maintenance calls. This two-position zone valve utilizes a high-torque synchronous motor and a specialized return spring to ensure positive shut-off against high differential pressures, maintaining system hydraulic balance in closed-loop chilled or hot water applications.
Key Technical Benefits
- Sync-Pro motor technology ensures long-term operational life and consistent timing under varying thermal loads.
- One-handed actuator removal via a simple push-button release streamlines field service and troubleshooting.
- Constructed with a forged brass body and stainless steel stem for superior corrosion resistance in hydronic loops.
- The spring return fail-safe mechanism ensures the valve defaults to a closed position during power loss to prevent uncontrolled heating or cooling.
- High temperature rating allows for use in both low-pressure steam and hot water baseboard systems.
Common Questions
Can the VT2222G13A020 be installed in any orientation?
Standard practice dictates these valves should be mounted in a vertical or horizontal upright position. Mounting the actuator upside down is not recommended as it increases the risk of condensate entering the motor housing.
Does this valve assembly include the end switch?
The G13A020 configuration typically includes an auxiliary end switch for signal feedback to boilers or circulator pumps, confirming the valve has reached its fully open position before the heat source engages.
What is the maximum close-off pressure for this 2.5 Cv model?
This specific 1/2" NPT assembly is rated for a close-off pressure of approximately 30 PSI, making it ideal for standard residential and light commercial multi-zone manifolds.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $110.70
-65%$110.70
$38.74Schneider Electric (Erie) VT2222G13A020 Valve Assembly
The Schneider Electric Erie VT2222G13A020 is a heavy-duty 2-way normally closed zone valve designed for reliable flow control in hydronic systems. Featuring a 1/2 inch NPT connection and a 2.5 Cv flow coefficient, this 24Vac spring return valve is engineered for high-demand commercial and residential HVAC applications. The PopTop actuator design allows for quick removal and replacement without draining the system, significantly reducing labor time during maintenance calls. This two-position zone valve utilizes a high-torque synchronous motor and a specialized return spring to ensure positive shut-off against high differential pressures, maintaining system hydraulic balance in closed-loop chilled or hot water applications.
Key Technical Benefits
- Sync-Pro motor technology ensures long-term operational life and consistent timing under varying thermal loads.
- One-handed actuator removal via a simple push-button release streamlines field service and troubleshooting.
- Constructed with a forged brass body and stainless steel stem for superior corrosion resistance in hydronic loops.
- The spring return fail-safe mechanism ensures the valve defaults to a closed position during power loss to prevent uncontrolled heating or cooling.
- High temperature rating allows for use in both low-pressure steam and hot water baseboard systems.
Common Questions
Can the VT2222G13A020 be installed in any orientation?
Standard practice dictates these valves should be mounted in a vertical or horizontal upright position. Mounting the actuator upside down is not recommended as it increases the risk of condensate entering the motor housing.
Does this valve assembly include the end switch?
The G13A020 configuration typically includes an auxiliary end switch for signal feedback to boilers or circulator pumps, confirming the valve has reached its fully open position before the heat source engages.
What is the maximum close-off pressure for this 2.5 Cv model?
This specific 1/2" NPT assembly is rated for a close-off pressure of approximately 30 PSI, making it ideal for standard residential and light commercial multi-zone manifolds.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
