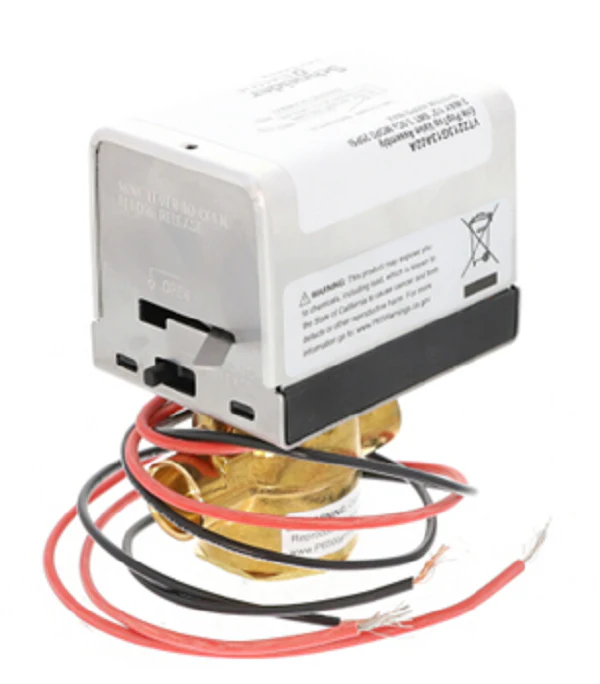

Schneider Electric (Erie) VT2213G13A02A Valve Assembly
The Schneider Electric Erie VT2213G13A02A is a robust two-way normally closed zone valve engineered for precision control in hydronic heating and cooling systems. Built for professional contractors, this 1/2 inch sweat valve assembly features a 3.5 Cv flow coefficient, ensuring efficient fluid regulation across terminal units. Operating on a 24Vac power supply, the motorized spring return actuator provides reliable fail-safe positioning, while the integral end switch allows for seamless auxiliary equipment sequencing, such as pump starts or boiler firing. This PopTop series valve simplifies installation and maintenance with its quick-release actuator head, minimizing downtime during field service. Designed to handle high-temperature water applications, this low voltage zone valve ensures consistent two-position control for residential and commercial hydronic loops. The sweat connection design provides a leak-resistant, permanent bond within the piping system, maintaining pressure integrity in demanding HVACR environments.
Key Benefits- Efficient Hydronic Control: High-flow 3.5 Cv rating reduces pressure drop across the 1/2" sweat connection.
- Fail-Safe Operation: Mechanical spring return ensures the valve closes upon power loss to prevent overheating or flooding.
- Integrated End Switch: Simplifies wiring for system-wide logic, allowing for direct signaling to circulators or controllers.
- PopTop Actuator Design: Enables rapid actuator replacement without draining the system, lowering labor costs.
- Compact Profile: Ideal for tight mechanical closets and baseboard installations where space is limited.
How do I wire the end switch on the VT2213G13A02A?
The internal end switch is a dry contact typically wired in series with the boiler T-T terminals or a pump relay to ensure the system only runs when the valve is fully open.
What is the maximum fluid temperature for this Erie valve?
This assembly is rated for standard hydropic applications, typically handling fluid temperatures up to 200°F, depending on the specific system pressure and ambient conditions.
Can the actuator be replaced without removing the valve body?
Yes, the PopTop series allows the 24Vac actuator to be swapped by pressing the release button, keeping the hydronic circuit intact.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $111.20
-65%$111.20
$38.92Schneider Electric (Erie) VT2213G13A02A Valve Assembly
The Schneider Electric Erie VT2213G13A02A is a robust two-way normally closed zone valve engineered for precision control in hydronic heating and cooling systems. Built for professional contractors, this 1/2 inch sweat valve assembly features a 3.5 Cv flow coefficient, ensuring efficient fluid regulation across terminal units. Operating on a 24Vac power supply, the motorized spring return actuator provides reliable fail-safe positioning, while the integral end switch allows for seamless auxiliary equipment sequencing, such as pump starts or boiler firing. This PopTop series valve simplifies installation and maintenance with its quick-release actuator head, minimizing downtime during field service. Designed to handle high-temperature water applications, this low voltage zone valve ensures consistent two-position control for residential and commercial hydronic loops. The sweat connection design provides a leak-resistant, permanent bond within the piping system, maintaining pressure integrity in demanding HVACR environments.
Key Benefits- Efficient Hydronic Control: High-flow 3.5 Cv rating reduces pressure drop across the 1/2" sweat connection.
- Fail-Safe Operation: Mechanical spring return ensures the valve closes upon power loss to prevent overheating or flooding.
- Integrated End Switch: Simplifies wiring for system-wide logic, allowing for direct signaling to circulators or controllers.
- PopTop Actuator Design: Enables rapid actuator replacement without draining the system, lowering labor costs.
- Compact Profile: Ideal for tight mechanical closets and baseboard installations where space is limited.
How do I wire the end switch on the VT2213G13A02A?
The internal end switch is a dry contact typically wired in series with the boiler T-T terminals or a pump relay to ensure the system only runs when the valve is fully open.
What is the maximum fluid temperature for this Erie valve?
This assembly is rated for standard hydropic applications, typically handling fluid temperatures up to 200°F, depending on the specific system pressure and ambient conditions.
Can the actuator be replaced without removing the valve body?
Yes, the PopTop series allows the 24Vac actuator to be swapped by pressing the release button, keeping the hydronic circuit intact.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
