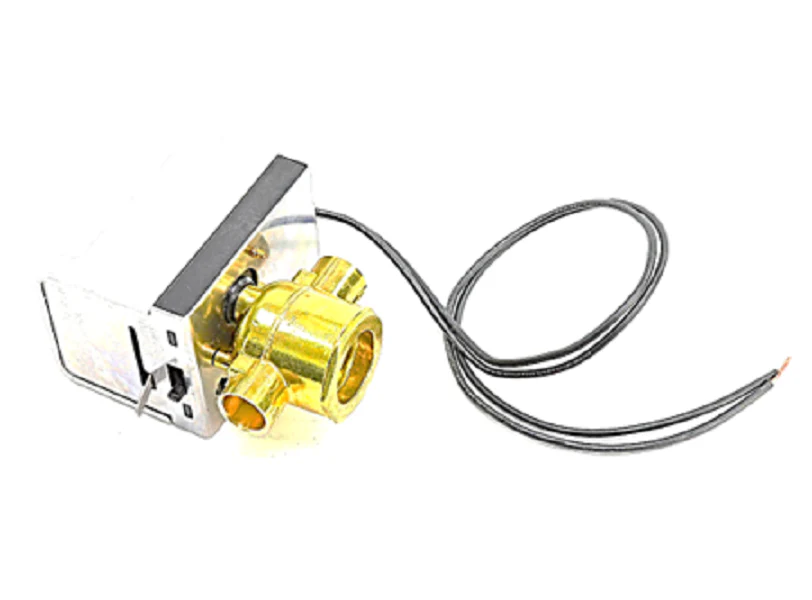

Schneider Electric (Erie) VT2213G13A020 Valve Assembly
The Schneider Electric Erie VT2213G13A020 is a high-performance two-way normally closed zone valve assembly engineered for precision control in hydronic heating and cooling systems. Built with the industry-standard Erie PopTop footprint, this unit facilitates seamless field service via a tool-less actuator removal mechanism, allowing for easy head replacement without breaking the 1/2" sweat connection or draining the system. The assembly integrates a durable forged brass valve body, a nickel-plated stem, and a Buna-N paddle to ensure a reliable ANSI Class IV seat leakage rating.
Operating on a 24Vac spring return actuator, the motor drives the valve open when powered and utilizes a mechanical spring to return to the closed position during power loss, providing essential fail-safe operation. Technical specifications include a 3.5 Cv flow coefficient and a maximum static pressure rating of 400 psi. Optimized for compatibility with water and glycol solutions (up to 50%), this 2-position zone valve is a staple for fan coil and baseboard applications requiring a quick-opening flow characteristic and a 25 psi close-off rating.
Key Benefits:- Tool-less Actuator Connection: The Schneider Electric PopTop series design allows the actuator to be swapped in seconds without professional tools.
- High Static Pressure Rating: Rated for system pressures up to 400 psi, ensuring durability in high-rise hydronic loops.
- Mechanical Fail-Safe: Reliable spring return operation ensures the valve closes automatically upon power failure to prevent uncontrolled overheating or cooling.
- Manual Override: Features a manual operating lever to allow system filling and troubleshooting even when the 24V power supply is disconnected.
- Compact Footprint: Specifically designed for tight clearances in air handlers, baseboards, and fan coil units.
- Can I use this for steam applications? No, the VT2213G13A020 is specifically designed for water and glycol; steam applications require the VS series valve bodies and high-temperature actuators.
- Does this include an end switch? This specific model (AG13A020 actuator) does not include an auxiliary end switch; if boiler or pump sequencing is required, verify your wiring requirements for a model with an "end switch" suffix.
- In what orientation should I install the valve? While it can be installed in horizontal or vertical piping, it is recommended to keep the actuator above the valve body to prevent condensation or leaks from entering the motor housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $106.16
-65%$106.16
$37.16Schneider Electric (Erie) VT2213G13A020 Valve Assembly
The Schneider Electric Erie VT2213G13A020 is a high-performance two-way normally closed zone valve assembly engineered for precision control in hydronic heating and cooling systems. Built with the industry-standard Erie PopTop footprint, this unit facilitates seamless field service via a tool-less actuator removal mechanism, allowing for easy head replacement without breaking the 1/2" sweat connection or draining the system. The assembly integrates a durable forged brass valve body, a nickel-plated stem, and a Buna-N paddle to ensure a reliable ANSI Class IV seat leakage rating.
Operating on a 24Vac spring return actuator, the motor drives the valve open when powered and utilizes a mechanical spring to return to the closed position during power loss, providing essential fail-safe operation. Technical specifications include a 3.5 Cv flow coefficient and a maximum static pressure rating of 400 psi. Optimized for compatibility with water and glycol solutions (up to 50%), this 2-position zone valve is a staple for fan coil and baseboard applications requiring a quick-opening flow characteristic and a 25 psi close-off rating.
Key Benefits:- Tool-less Actuator Connection: The Schneider Electric PopTop series design allows the actuator to be swapped in seconds without professional tools.
- High Static Pressure Rating: Rated for system pressures up to 400 psi, ensuring durability in high-rise hydronic loops.
- Mechanical Fail-Safe: Reliable spring return operation ensures the valve closes automatically upon power failure to prevent uncontrolled overheating or cooling.
- Manual Override: Features a manual operating lever to allow system filling and troubleshooting even when the 24V power supply is disconnected.
- Compact Footprint: Specifically designed for tight clearances in air handlers, baseboards, and fan coil units.
- Can I use this for steam applications? No, the VT2213G13A020 is specifically designed for water and glycol; steam applications require the VS series valve bodies and high-temperature actuators.
- Does this include an end switch? This specific model (AG13A020 actuator) does not include an auxiliary end switch; if boiler or pump sequencing is required, verify your wiring requirements for a model with an "end switch" suffix.
- In what orientation should I install the valve? While it can be installed in horizontal or vertical piping, it is recommended to keep the actuator above the valve body to prevent condensation or leaks from entering the motor housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
