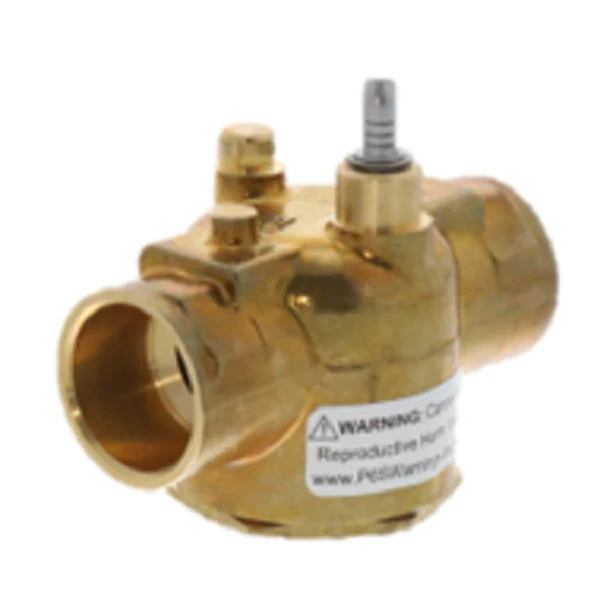

Schneider Electric (Erie) VM2317 Valve Body
The Schneider Electric (Erie) VM2317 is a heavy-duty, 2-way modulating valve body engineered for precise fluid control in hydronic heating and cooling systems. Built with a rugged forged brass construction, this 3/4-inch sweat connection zone valve is designed to integrate seamlessly into fan coil units, VAV reheat coils, and radiant manifolds. Featuring a high flow coefficient of 7.5 Cv, the VM2317 provides superior throughput with minimal pressure drop, making it an essential component for commercial and residential HVACR applications. This Erie PopTop valve utilizes a linear flow characteristic to ensure stable modulating performance when paired with compatible non-spring or spring-return actuators. It is rated for static pressures up to 300 psig and is compatible with water or glycol solutions up to 60% concentration. The modular PopTop design allows for one-handed actuator removal, simplifying field service and reducing labor time during installation.
Key Benefits- High-Flow Efficiency: The 7.5 Cv rating ensures optimal delivery for high-demand zones without restricted flow.
- Contractor-Friendly Installation: Standard 3/4-inch sweat connections provide a reliable, leak-free joint in copper piping systems.
- Precise Modulation: Engineered for modulating control, allowing for exact temperature maintenance rather than simple on/off cycling.
- Durable Construction: Forged brass body with a nickel-plated stem and EPDM/thermoplastic internal components for long-term service life.
- Universal PopTop Compatibility: Easily pairs with Schneider Electric VM series actuators without requiring complex linkages or calibration.
Is the VM2317 compatible with steam systems?
No, this valve body is specifically rated for hot and chilled water applications. For steam service, a high-temperature rated VS series valve body must be used.
Can I replace the actuator without draining the system?
Yes. The Erie PopTop design allows the motorized actuator to be snapped off the valve body without breaking the hydronic seal, eliminating the need to drain the loop for electrical service.
What is the maximum fluid temperature for this valve?
The VM2317 is designed to handle media temperatures ranging from 32°F to 200°F (0°C to 93°C) when used with standard AG or VM series actuators.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
