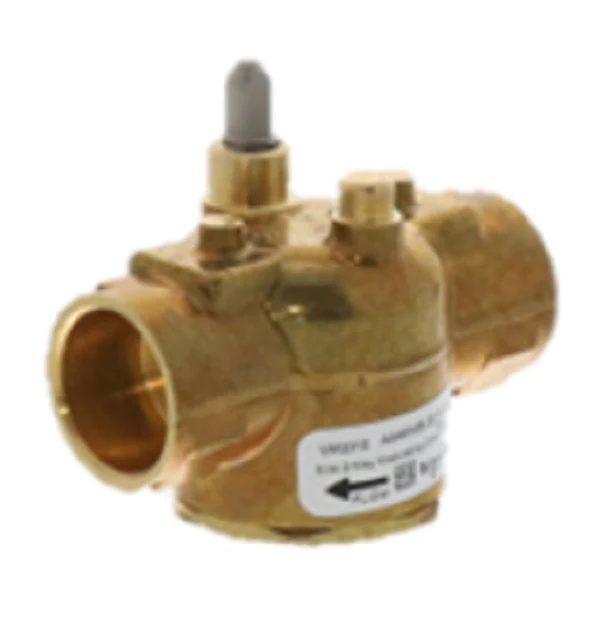

Schneider Electric (Erie) VM2312 Valve Body
The Schneider Electric (Erie) VM2312 Valve Body is a professional-grade solution for precise flow management in closed-loop hydronic systems. This 2-way modulating valve body features a 3/4" sweat connection and a 2.0 Cv rating, making it ideal for fan coil and baseboard applications where accurate temperature control is non-negotiable. Engineered with a forged brass body, this unit is rated for a static pressure of 300 psig and handles media temperatures ranging from 32°F to 200°F. The Erie PopTop design allows for 100% tool-free actuator removal with a simple push-button release, significantly reducing labor time during installation and maintenance. Designed for compatibility with both water and glycol solutions (up to 50%), the VM2312 utilizes an equal percentage flow characteristic to ensure linear heat output, regardless of system pressure fluctuations. This heavy-duty valve body provides a tight shut-off meeting ANSI Class IV leakage standards, preventing "ghost heating" and improving overall energy efficiency across the mechanical layout.
Key Benefits- PopTop Quick Release: Allows for the actuator to be installed or replaced in seconds without breaking the hydronic seal or using specialized tools.
- Forged Brass Durability: Provides a robust 300 psig pressure rating, ensuring long-term reliability in demanding commercial and residential HVACR environments.
- Precise Modulating Control: The 2.0 Cv rating and equal percentage plug geometry deliver stable, hunt-free temperature regulation for superior occupant comfort.
- Versatile Fluid Handling: Specifically rated for use with water and up to 50% glycol concentrations, accommodating diverse system requirements.
- ANSI Class IV Leakage: Ensures a high-integrity seal when closed, protecting system performance and reducing waste.
Is the VM2312 compatible with steam systems?
No, this specific model is designed for hot and chilled water applications only. For low-pressure steam requirements, technicians should specify the VS series valve bodies.
Can I install the actuator before soldering the sweat connections?
It is standard practice to remove the actuator before soldering the 3/4" sweat connections to prevent thermal damage to the internal seals and the actuator components.
What is the maximum close-off pressure for this 2.0 Cv body?
The VM2312 is typically rated for a close-off pressure of up to 50 psid, though actual performance depends on the specific PopTop actuator torque rating selected for the assembly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
