Schneider Electric (Erie) AH23A02A Actuator

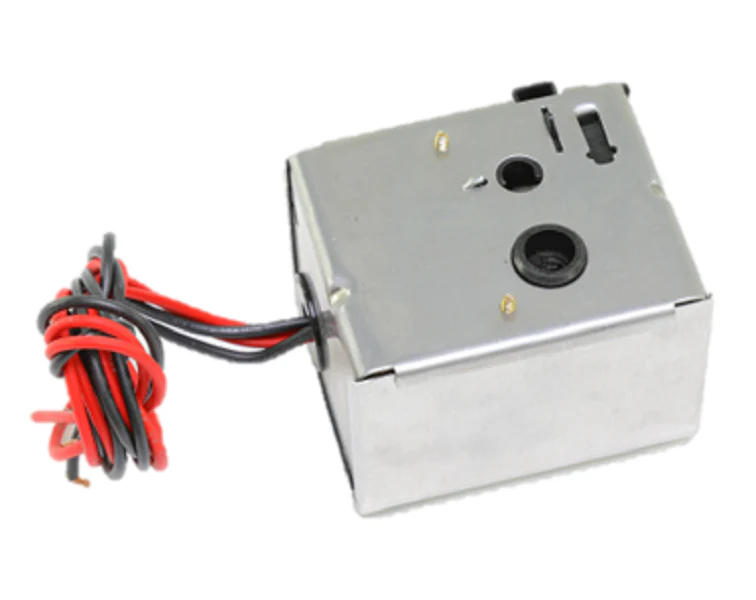

The Schneider Electric Erie AH23A02A Actuator is a direct-replacement 24Vac 2-position actuator engineered for demanding hydronic zone control. As part of the industrial-standard Erie PopTop series, this spring return motorized valve actuator features a normally open (N.O.) configuration, ensuring safe system positioning during power loss. Designed for high close-off requirements, it manages up to 60 psi differential pressure, making it ideal for high-rise commercial loops or systems with significant pump head. The integrated SPDT end switch provides a critical feedback signal for interlocking circulators or boiler stages, streamlining sequence-of-operation wiring. This HVAC zone valve motor utilizes a synchronous drive for consistent timing, with an 18-inch wire lead assembly for flexible field termination. The quick-mount button allows for one-handed attachment to the valve body without the need for specialized tools, calibration, or complex linkages, reducing labor time for service contractors.
Key Benefits- Enhanced System Reliability: The high close-off actuator design prevents seat leakage in high-pressure hydronic systems.
- Simplified Installation: Features the Erie PopTop quick-release mechanism for tool-free mounting to compatible VT or VS valve bodies.
- Integrated Auxiliary Control: Built-in end switch allows for seamless integration with zone controllers or burner circuits.
- Robust Construction: Housed in a durable aluminum cover with a stainless steel base plate to withstand mechanical stress in mechanical rooms.
- Failsafe Operation: Reliable spring return mechanism ensures the valve returns to its normally open state upon loss of 24Vac power.
Is the AH23A02A compatible with 3-way valve bodies?
This 24V actuator is specifically designed for 2-way normally open applications. While some technicians use N.C. actuators on 3-way bodies by reversing the piping, this unit is factory-optimized for standard N.O. 2-way configurations.
What is the maximum operating temperature for this motor?
The AH23A02A is rated for media temperatures ranging from 32° to 200°F (0° to 93°C), making it suitable for both chilled water and standard hot water loops.
Can I replace the actuator without draining the system?
Yes, the Erie PopTop design allows you to swap the actuator head without breaking the plumbing seal or depressurizing the hydronic loop.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $141.73
-65%$141.73
$49.61Schneider Electric (Erie) AH23A02A Actuator
The Schneider Electric Erie AH23A02A Actuator is a direct-replacement 24Vac 2-position actuator engineered for demanding hydronic zone control. As part of the industrial-standard Erie PopTop series, this spring return motorized valve actuator features a normally open (N.O.) configuration, ensuring safe system positioning during power loss. Designed for high close-off requirements, it manages up to 60 psi differential pressure, making it ideal for high-rise commercial loops or systems with significant pump head. The integrated SPDT end switch provides a critical feedback signal for interlocking circulators or boiler stages, streamlining sequence-of-operation wiring. This HVAC zone valve motor utilizes a synchronous drive for consistent timing, with an 18-inch wire lead assembly for flexible field termination. The quick-mount button allows for one-handed attachment to the valve body without the need for specialized tools, calibration, or complex linkages, reducing labor time for service contractors.
Key Benefits- Enhanced System Reliability: The high close-off actuator design prevents seat leakage in high-pressure hydronic systems.
- Simplified Installation: Features the Erie PopTop quick-release mechanism for tool-free mounting to compatible VT or VS valve bodies.
- Integrated Auxiliary Control: Built-in end switch allows for seamless integration with zone controllers or burner circuits.
- Robust Construction: Housed in a durable aluminum cover with a stainless steel base plate to withstand mechanical stress in mechanical rooms.
- Failsafe Operation: Reliable spring return mechanism ensures the valve returns to its normally open state upon loss of 24Vac power.
Is the AH23A02A compatible with 3-way valve bodies?
This 24V actuator is specifically designed for 2-way normally open applications. While some technicians use N.C. actuators on 3-way bodies by reversing the piping, this unit is factory-optimized for standard N.O. 2-way configurations.
What is the maximum operating temperature for this motor?
The AH23A02A is rated for media temperatures ranging from 32° to 200°F (0° to 93°C), making it suitable for both chilled water and standard hot water loops.
Can I replace the actuator without draining the system?
Yes, the Erie PopTop design allows you to swap the actuator head without breaking the plumbing seal or depressurizing the hydronic loop.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
