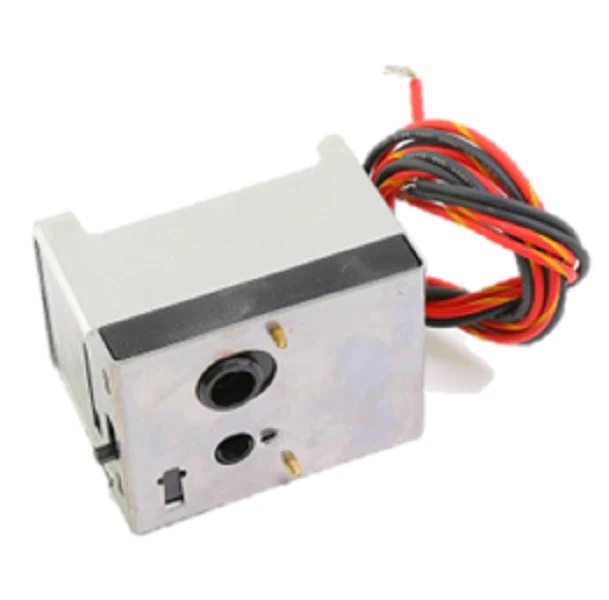

Schneider Electric (Erie) AG24A02A Actuator
The Schneider Electric (Erie) AG24A02A Actuator is a rigorous solution for high-temperature hydronic and steam applications requiring a Normally Open failsafe state. This 24VAC two-position actuator is part of the Erie PopTop AG Series, engineered for quick, tool-free installation directly onto VT/VS series zone valves. Featuring a robust synchronous motor with a spring return mechanism, the unit ensures reliable close-off during power loss. Its high-temperature construction makes it suitable for media up to 250°F (121°C) at 15 psig steam, making it a staple for commercial and residential steam heating systems. The integrated end switch (SPST) allows for auxiliary verification of valve position, simplifying sequence-of-operation wiring for contractors. With 18-inch wire leads and a durable aluminum cover over a stainless steel base plate, this actuator is built to withstand the demanding conditions of mechanical rooms while maintaining precise rotary stem movement.
Key Benefits for Technicians:- Simplified Installation: The PopTop mounting system allows for one-handed removal and engagement without the need for linkages or calibration.
- High Thermal Tolerance: Purpose-built as a high temperature actuator, facilitating safe operation in low-pressure steam and hot water systems.
- Built-in Feedback: Includes an integral end switch for easy integration with pumps, fans, or controllers.
- Reliable Failsafe: Mechanical spring return ensures the valve returns to the Normally Open position immediately upon power interruption.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $96.50
-65%$96.50
$33.77Schneider Electric (Erie) AG24A02A Actuator
The Schneider Electric (Erie) AG24A02A Actuator is a rigorous solution for high-temperature hydronic and steam applications requiring a Normally Open failsafe state. This 24VAC two-position actuator is part of the Erie PopTop AG Series, engineered for quick, tool-free installation directly onto VT/VS series zone valves. Featuring a robust synchronous motor with a spring return mechanism, the unit ensures reliable close-off during power loss. Its high-temperature construction makes it suitable for media up to 250°F (121°C) at 15 psig steam, making it a staple for commercial and residential steam heating systems. The integrated end switch (SPST) allows for auxiliary verification of valve position, simplifying sequence-of-operation wiring for contractors. With 18-inch wire leads and a durable aluminum cover over a stainless steel base plate, this actuator is built to withstand the demanding conditions of mechanical rooms while maintaining precise rotary stem movement.
Key Benefits for Technicians:- Simplified Installation: The PopTop mounting system allows for one-handed removal and engagement without the need for linkages or calibration.
- High Thermal Tolerance: Purpose-built as a high temperature actuator, facilitating safe operation in low-pressure steam and hot water systems.
- Built-in Feedback: Includes an integral end switch for easy integration with pumps, fans, or controllers.
- Reliable Failsafe: Mechanical spring return ensures the valve returns to the Normally Open position immediately upon power interruption.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Schneider Electric (Erie) AG24A02A Actuator is a rigorous solution for high-temperature hydronic and steam applications requiring a Normally Open failsafe state. This 24VAC two-position actuator is part of the Erie PopTop AG Series, engineered for quick, tool-free installation directly onto VT/VS series zone valves. Featuring a robust synchronous motor with a spring return mechanism, the unit ensures reliable close-off during power loss. Its high-temperature construction makes it suitable for media up to 250°F (121°C) at 15 psig steam, making it a staple for commercial and residential steam heating systems. The integrated end switch (SPST) allows for auxiliary verification of valve position, simplifying sequence-of-operation wiring for contractors. With 18-inch wire leads and a durable aluminum cover over a stainless steel base plate, this actuator is built to withstand the demanding conditions of mechanical rooms while maintaining precise rotary stem movement.
Key Benefits for Technicians:- Simplified Installation: The PopTop mounting system allows for one-handed removal and engagement without the need for linkages or calibration.
- High Thermal Tolerance: Purpose-built as a high temperature actuator, facilitating safe operation in low-pressure steam and hot water systems.
- Built-in Feedback: Includes an integral end switch for easy integration with pumps, fans, or controllers.
- Reliable Failsafe: Mechanical spring return ensures the valve returns to the Normally Open position immediately upon power interruption.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
