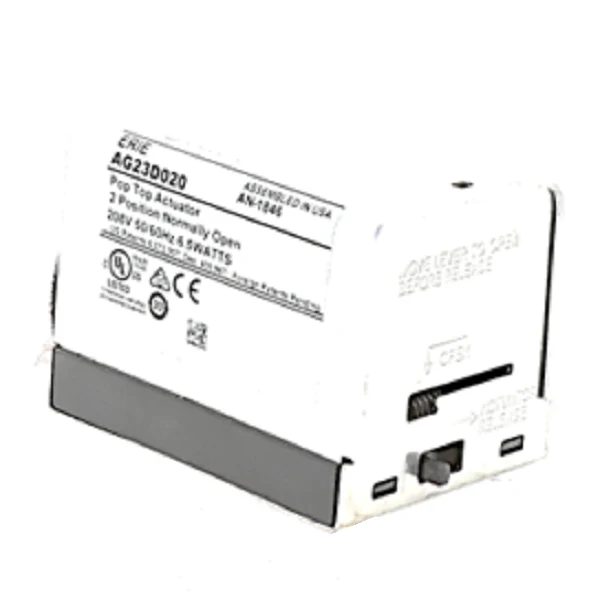

Schneider Electric (Erie) AG23D020 Actuator
The Schneider Electric (Erie) AG23D020 Actuator is a heavy-duty 208Vac PopTop actuator engineered for precise terminal unit control in commercial hydronic systems. This two-position spring return motor is designed for normally open (N/O) operation, providing a mechanical fail-safe in the event of power loss. Built with a hysteresis synchronous motor, this zone valve actuator ensures consistent torque and extended service life when managing hot or chilled water flow. The AG23D020 features an 18-inch wire lead assembly for direct hardwiring and a tool-free "PopTop" mounting mechanism, allowing contractors to snap the replacement HVAC actuator onto any compatible VT valve body without time-consuming linkages or calibration. Its stainless steel base and aluminum cover housing are rated for fluid temperatures up to 200°F, making it a reliable choice for fan coil, baseboard, and air handler applications where industrial-grade 208V HVAC controls are required.
Key Benefits:
- Simplified Installation: The signature PopTop design allows for one-handed removal and engagement, facilitating quick field service without removing the valve body from the line.
- System Reliability: The spring return failsafe mechanism automatically returns the valve to its normal position, protecting equipment during power interruptions.
- High Compatibility: Direct replacement for all standard two-position Erie PopTop applications involving 208V power requirements.
- Professional Durability: Equipped with a synchronous motor drive and robust housing to withstand continuous cycling in commercial hydronic environments.
Common Questions:
Is the AG23D020 compatible with 3-way valves?
This specific model is typically utilized for two-way normally open configurations. Note that 3-way valves generally require normally closed actuators or specific piping orientations to achieve the desired flow path.
Can I replace the actuator without draining the system?
Yes, the PopTop mounting system is designed so the actuator can be replaced without disturbing the valve or breaking the plumbing seal, significantly reducing labor time.
What is the maximum fluid temperature this unit can handle?
This Schneider Electric actuator is rated for a maximum fluid temperature of 200°F (93°C) when used in a standard ambient environment of 104°F.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $89.18
-65%$89.18
