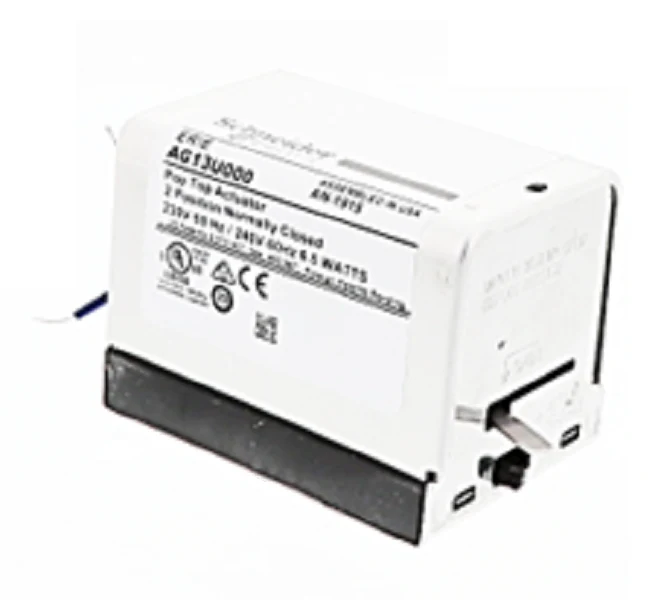

Schneider Electric (Erie) AG13U000 Actuator
The Schneider Electric Erie AG13U000 is an industry-standard two-position spring return actuator designed for reliable control in hydronic heating and cooling systems. Built with a hysteresis synchronous motor, this 240Vac unit provides a dependable normally closed fail-safe position, ensuring the valve returns to its original state upon power loss. As part of the Erie PopTop series, it features a tool-free mounting system that allows contractors to snap the actuator onto VT/VS series zone valves with a single hand, significantly reducing labor time during field installation or motor replacement.
Engineered for high-performance HVAC zone control, the AG13U000 includes 6-inch motor wires and a manual override lever to facilitate system testing and emergency operation. Its robust construction is rated for general temperature applications, making it a preferred choice for fan coils, baseboard radiation, and air handlers. The spring return fail-safe mechanism provides On/Off control with consistent torque, maintaining system integrity in residential and commercial hydronic valve assemblies.
- Universal PopTop Design: Allows for quick, one-handed installation and removal without disconnecting the valve body from the piping.
- Reliable Fail-Safe: The spring return mechanism ensures the valve closes automatically during power interruptions to prevent overheating or flooding.
- High Voltage Compatibility: Specifically rated for 240V or 230V systems, common in commercial and specialized industrial HVAC footprints.
- Manual Override: Integrated lever allows for manual opening of normally closed valves for easy system filling and air purging.
Common Questions:
Is the AG13U000 compatible with steam applications?
This specific model is rated for general temperature hydronic systems. For low-pressure steam, ensure the valve body and actuator are matched with the appropriate high-temperature rating, typically indicated by a "Steam" classification in the series.
Does this actuator include an end switch?
The AG13U000 is a standard two-wire motor configuration without an auxiliary end switch. If your system requires signaling for a boiler or pump start, look for models suffixing with an "S" or integrated SPDT switches.
Can I replace just the actuator without draining the system?
Yes, the Erie PopTop design is specifically engineered so the actuator can be swapped out without breaking the plumbing seal, saving time on service calls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
