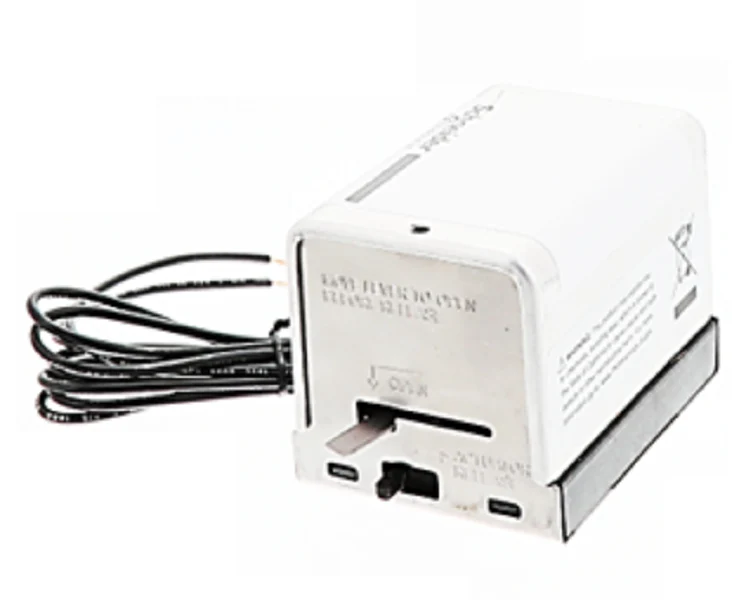

Schneider Electric (Erie) AG13T030 Actuator
The Schneider Electric (Erie) AG13T030 Actuator is a professional-grade 277Vac zone valve actuator engineered for precise on/off heating and cooling control. Part of the renowned Erie PopTop series, this normally closed actuator features a robust two-position spring return mechanism, ensuring dependable fail-safe operation in the event of power loss. Designed for direct mounting on VT/VS series valve bodies, it utilizes a synchronous motor to manage fluid temperatures between 32°F and 200°F, making it a standard for fan coil and baseboard applications. With its integrated 3-foot appliance cable, this 277-volt HVAC actuator simplifies field wiring for commercial contractors. The compact housing is built to withstand demanding mechanical room environments while maintaining General Close-Off ratings. Technicians value the signature PopTop design, which allows for rapid head replacement without draining the system, significantly reducing labor hours during routine maintenance or retrofits.
Key Benefits- Fast Field Installation: The PopTop actuator snaps directly onto the valve body without the need for complex linkages or calibration tools.
- Fail-Safe Reliability: Built-in spring return functionality ensures the valve returns to the normally closed position if the 277Vac signal is interrupted.
- Standard Temperature Rating: Optimized for hydronic systems with fluid temperatures up to 200°F and 104°F ambient limits.
- Extended Connectivity: Includes a factory-installed 3' appliance cable (36-inch leads) for convenient routing and connection.
- Interchangeable Design: Compatible with a wide range of Schneider Electric and Erie zone valves, supporting both 2-way and 3-way mixing configurations.
Is the AG13T030 compatible with steam systems?
This specific model is rated for standard hot and chilled water applications. For 15 psi steam applications, look for the AG14 or AH14 high-temperature rated series.
Can I manually operate the valve if power is disconnected?
Yes, this unit includes a manual override lever that allows the technician to lock the valve in the open position for system filling or troubleshooting.
Does this 277V actuator include an end switch?
The 13T030 variant is a general-purpose model; checking the specific suffix (e.g., "A" for end switch) is recommended if your control circuit requires auxiliary contact verification.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
