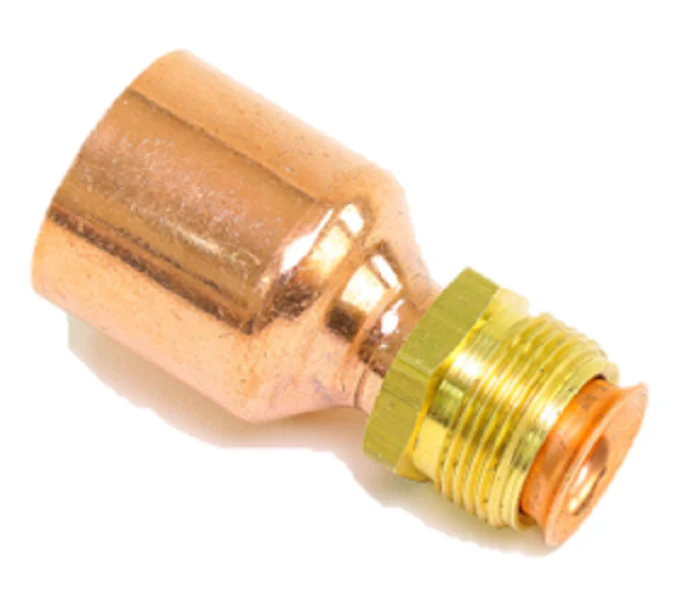

Schneider Electric (Erie) 436-256 Fitting
The Schneider Electric (Erie) 436-256 is a professional-grade PopTop inverted flare fitting engineered for seamless integration with Erie zone valve assemblies. Featuring a 1" sweat carbon steel nut and female tube configuration, this fitting is specific to HVEC hydronic systems where reliable, leak-proof connections are mandatory. Designed to facilitate quick serviceability, the inverted flare connection allows technicians to secure or replace valve bodies without reworking the primary copper piping. The 436-256 fitting ensures a high-pressure seal under standard operating temperatures, making it a staple for contractors maintaining large-scale commercial HVAC systems. By utilizing the PopTop inverted flare mounting system, this component minimizes installation downtime and reduces the risk of mechanical failure at critical junctions within the hydronic loop.
Key Benefits for Technicians- Compatibility: Perfectly matched for Schneider Electric Erie PopTop series zone valves.
- Durable Construction: High-tolerance sweat connection ensures long-term structural integrity in high-vibration environments.
- Reduced Labor: The 1" female tube and nut assembly allows for faster valve swaps during preventative maintenance.
- Precision Machining: Tight tolerances on the inverted flare threads prevent cross-threading and ensure a repeatable seal.
What is the primary function of the Schneider Electric 436-256?
This fitting serves as the mechanical interface between the Erie PopTop zone valve and the 1" copper piping, providing a secure inverted flare union.
Does this fitting require specialized tools for installation?
Standard soldering equipment is required for the 1" sweat connection, followed by a standard wrench to torque the inverted flare nut to the valve body.
Can the 436-256 be used with other valve brands?
This fitting is specifically engineered for the Erie PopTop series; verify the thread pitch and flare depth before attempting installation on non-Schneider components.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $26.00
-65%$26.00
$9.10Schneider Electric (Erie) 436-256 Fitting
