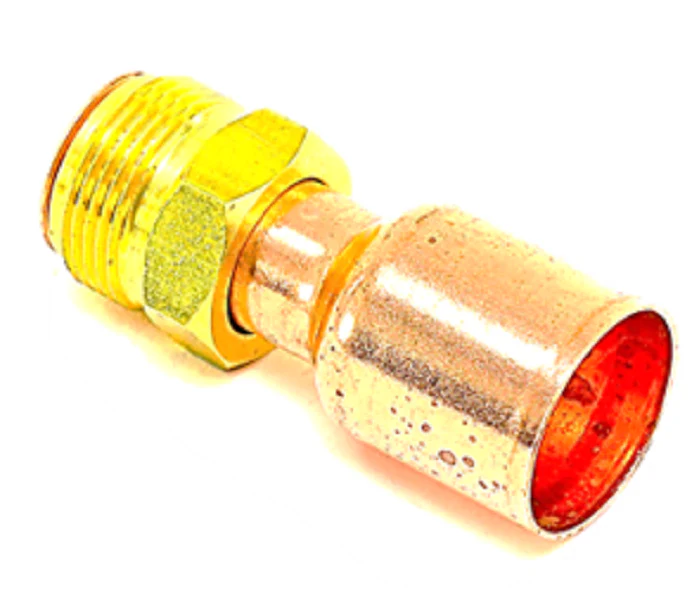

Schneider Electric (Erie) 436-252 Fitting
The Schneider Electric (Erie) 436-252 is a precision-engineered inverted flare fitting designed specifically for professional HVACR hydronic applications. This 3/4 inch sweat female tube and nut assembly provides a robust, leak-resistant connection between your copper piping and Erie PopTop zone valves. Utilizing forged brass construction, this fitting is built to withstand rigorous system demands, supporting static pressure limits up to 400 psi. With an overall length of 1-27/32 inches, it facilitates streamlined integration in tight mechanical enclosures, such as fan coils, baseboards, and air handlers. For contractors managing chilled water or hot water systems with up to 50% glycol, the 436-252 fitting ensures high-integrity fluid flow. This PopTop accessory serves as a direct replacement component, allowing for efficient field installation of inverted flare bodies. Its 3/4" (7/8" O.D.) female sweat connection enables standard soldering techniques to form a permanent, secure bond with system piping.
Key Benefits- Optimized Compatibility: Engineered for seamless use with Schneider Electric Erie VT/VS PopTop series 3/4" inverted flare valve bodies.
- High Pressure Rating: Rated for system static pressures up to 400 psi, ensuring reliability in demanding commercial and residential hydronic loops.
- Durable Construction: High-grade brass materials prevent corrosion and maintain mechanical integrity under varied thermal conditions.
- Simplified Installation: The tube and nut design allows for quick assembly and serviceability in the field.
- Standardized Sizing: Features a standard 3/4" female sweat (7/8" O.D.) connection for universal fitment with domestic copper tubing.
What valves are compatible with the 436-252 fitting?
This 3/4" sweat female fitting is specifically designed for Erie PopTop inverted flare valve bodies. It is widely used in VT and VS series zone valve assemblies.
Can this fitting be used in steam applications?
Yes, when paired with the appropriate VS series high-temperature valve body and actuator, this fitting supports low-pressure steam systems up to 15 psi.
Are special tools required for installation?
Standard HVACR tools are required, including soldering equipment for the sweat connection and a wrench (typically 1" to 1-5/8") to secure the flare nut.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
