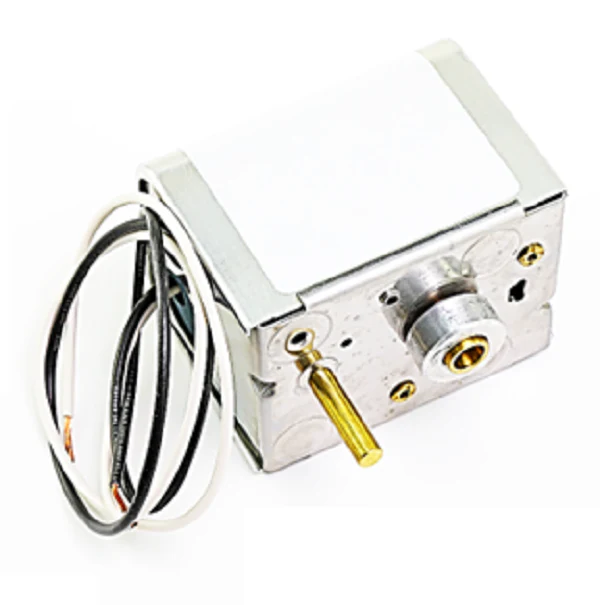

Schneider Electric (Erie) 0453L0077GB00 Actuator
The Schneider Electric Erie 0453L0077GB00 is a specialized 120V damper actuator engineered for light-duty automation in zoned HVAC systems and draft control for solid-fuel boilers. As a two-position damper actuator, it utilizes a spring return safety mechanism to ensure the damper reaches a fail-safe position during a power loss. With a 45 in-oz torque rating, this direct drive actuator provides precise clockwise (CW) rotation, making it ideal for air handling units that require reliable on/off control without complex linkages. The synchronous motor design ensures quiet operation and long-term timing accuracy in commercial or residential ventilation applications.
Designed for professional installation, the Erie 453L series features a NEMA 1 protection rating and a simplified 2-wire thermostat interface that streamlines field wiring. Its lost-motion drive protects the internal gear train from mechanical binding, extending the life of the unit in high-cycle environments. This Schneider Electric actuator is UL recognized and CSA listed, meeting stringent safety standards for 120Vac light-duty HVAC applications. Whether you are replacing a legacy 0453G0077EB00 or performing a new install, this motor provides the rugged reliability tech-savvy contractors expect from the Erie product line.
Key Benefits- Direct Drive Efficiency: Eliminates the need for complex linkages, simplifying the installation process.
- Spring Return Fail-Safe: Automatically closes or opens the damper during power interruptions to prevent unsafe airflow conditions.
- Gear Train Protection: The exclusive lost-motion drive design prevents internal damage if the damper blades meet an obstruction.
- Standardized Voltage: Operates on 120Vac, making it compatible with most standard commercial building power systems.
- High Durability: Rated for operating temperatures between 0 to 120°F within NEMA 1 enclosures.
- Is this actuator compatible with 24V systems? No, this model is specifically rated for 120Vac. For 24V applications, you would require the 0453L0077GA00.
- What is the fail-safe direction of this motor? This is a CW (clockwise) rotation model with a spring return that engages once power is removed.
- Can I use this for heavy-duty multi-blade dampers? This unit is rated for light-duty (45 in-oz). For larger dampers or high-pressure systems, consider the medium-duty (H series) or heavy-duty (R series) alternatives.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
