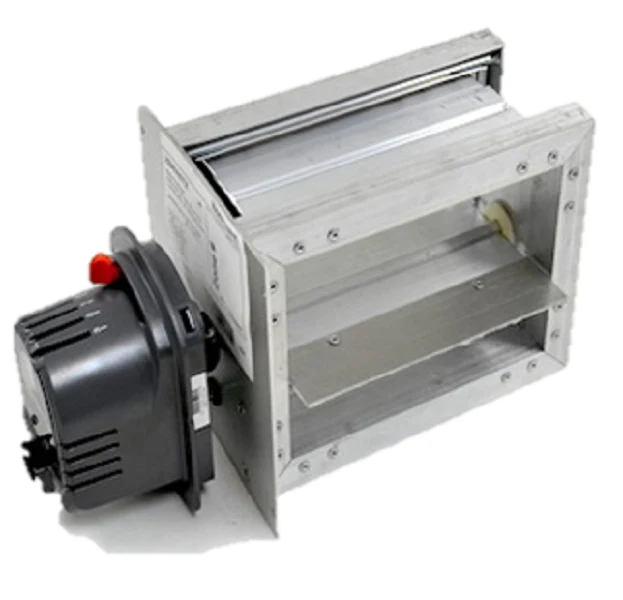

Resideo ZD8X6TZ Damper
The Resideo ZD8X6TZ is a heavy-duty, 8" x 6" rectangular zone damper engineered for precise airflow management in multizone forced-air systems. Built as a power closed spring return open unit, this damper ensures a fail-safe normally open state, providing reliable ventilation even during power interruptions. It features a high-torque, 24Vac synchronous motor mounted on the 6" side, delivering a consistent 30-second power closure and a rapid 10-second spring return. The parallel blade damper construction, utilizing extruded aluminum frames and blades, minimizes air bypass with a leakage rating of less than 1% at 0.5 in. WC. Designed for seamless integration with Honeywell TrueZONE panels and other 24V electronic zoning systems, the ZD8X6TZ includes a mechanical visual position indicator and adjustable range stops. This 2-wire zone damper supports flexible installation in any orientation, making it a staple for contractors prioritizing long-term reliability and low-maintenance operation in residential or light commercial ductwork.
Key Benefits- Fail-Safe Operation: The power-closed, spring return open design ensures maximum safety by defaulting to an open position if power is lost.
- High-Performance Seal: Extruded aluminum parallel blades provide a low-leakage seal, optimized for systems with static pressures up to 1.0 in. WC.
- Contractor-Friendly Install: Features a simple 2-wire installation (M1 and M6) with an optional M4 terminal for LED status monitoring.
- Internal Durability: Equipped with Kevlar-reinforced gearing to reduce mechanical wear and extend the operational life of the actuator.
- Universal Mounting: The multi-poise motor can be mounted in any orientation to accommodate tight plenum spaces or complex duct runs.
Is the Resideo ZD8X6TZ compatible with 3-wire zone panels?
Yes, this 2-wire 24Vac zone damper is compatible with most modern Honeywell Home TrueZONE panels and legacy 3-wire systems, provided the panel supports power-closed/spring-open logic or uses a slave relay where required.
What is the difference between parallel and opposed blade dampers?
The ZD8X6TZ utilizes a parallel blade design, where all blades rotate in the same direction. This is preferred in zoning applications for its predictable airflow characteristics and lower pressure drop when fully open.
Can the motor be replaced without removing the entire damper frame?
Yes, the synchronous motor is side-mounted and can be serviced or replaced directly on the ductwork, minimizing downtime for the HVAC system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
