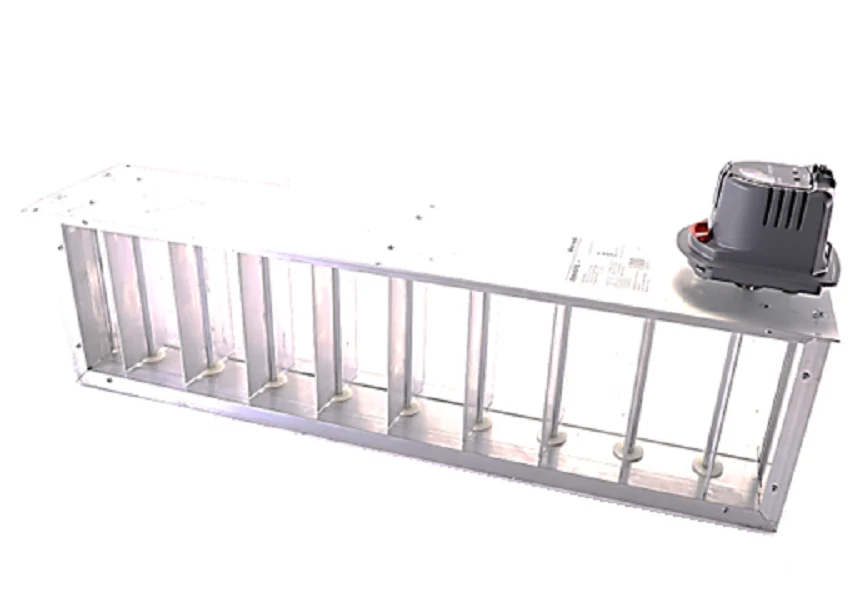

Resideo ZD8X28TZ Damper
The Resideo ZD8X28TZ Damper is a precision-engineered 8" Wide X 28" High Parallel Blade Zone Damper designed for high-performance airflow management in heavy-duty HVACR applications. Built with a solid extruded aluminum frame and parallel blades, this unit ensures a low leakage performance and structural rigidity required for high-static pressure systems. The damper utilizes a reliable 24Vac synchronous motor mounted on the 28" side, operating as a two-position zone damper with a fail-safe power closed/spring return open configuration. Featuring advanced Kevlar gearing, this assembly is built to withstand repeated cycles without the mechanical fatigue typical of standard nylon gears. The integrated mechanical visual position indicator provides immediate feedback on blade status, while adjustable range stops allow for fine-tuned calibration of minimum and maximum air bleed. This TrueZONE rectangular damper is fully compatible with Resideo and Honeywell zoning panels, offering a simple two-wire installation for professional contractors seeking a robust, fail-safe solution for air quality control.
- Fail-Safe Operation: The spring return open mechanism ensures the system defaults to the open position during power loss for uninterrupted airflow.
- Engineered Durability: Equipped with Kevlar gearing and a solid extruded aluminum frame to maximize service life in demanding environments.
- Precision Control: Features adjustable range stops and a mechanical visual position indicator for accurate system balancing.
- Optimized Airflow: The parallel blade design provides superior airflow characteristics and minimal pressure drop when fully open.
- System Compatibility: Seamlessly integrates with 24Vac zoning systems and TrueZONE control panels via a standard two-wire motor interface.
Common Questions
Which side is the motor mounted on for the ZD8X28TZ?
On this specific model, the actuator is mounted on the 28-inch dimension side. It is critical to verify duct orientation before installation to ensure the motor remains accessible for service.
Can this damper be used in a power-open configuration?
No, this model is a power closed/spring return open (normally open) unit. If your application requires a normally closed damper, you must specify a power-open model or a field-reversible actuator where compatible.
What is the maximum static pressure rating for this parallel blade damper?
The ZD series is rated for a maximum static pressure of 1.0" WC, making it suitable for most residential and light commercial forced-air zoning systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $313.49
-65%$313.49
$109.72Resideo ZD8X28TZ Damper
The Resideo ZD8X28TZ Damper is a precision-engineered 8" Wide X 28" High Parallel Blade Zone Damper designed for high-performance airflow management in heavy-duty HVACR applications. Built with a solid extruded aluminum frame and parallel blades, this unit ensures a low leakage performance and structural rigidity required for high-static pressure systems. The damper utilizes a reliable 24Vac synchronous motor mounted on the 28" side, operating as a two-position zone damper with a fail-safe power closed/spring return open configuration. Featuring advanced Kevlar gearing, this assembly is built to withstand repeated cycles without the mechanical fatigue typical of standard nylon gears. The integrated mechanical visual position indicator provides immediate feedback on blade status, while adjustable range stops allow for fine-tuned calibration of minimum and maximum air bleed. This TrueZONE rectangular damper is fully compatible with Resideo and Honeywell zoning panels, offering a simple two-wire installation for professional contractors seeking a robust, fail-safe solution for air quality control.
- Fail-Safe Operation: The spring return open mechanism ensures the system defaults to the open position during power loss for uninterrupted airflow.
- Engineered Durability: Equipped with Kevlar gearing and a solid extruded aluminum frame to maximize service life in demanding environments.
- Precision Control: Features adjustable range stops and a mechanical visual position indicator for accurate system balancing.
- Optimized Airflow: The parallel blade design provides superior airflow characteristics and minimal pressure drop when fully open.
- System Compatibility: Seamlessly integrates with 24Vac zoning systems and TrueZONE control panels via a standard two-wire motor interface.
Common Questions
Which side is the motor mounted on for the ZD8X28TZ?
On this specific model, the actuator is mounted on the 28-inch dimension side. It is critical to verify duct orientation before installation to ensure the motor remains accessible for service.
Can this damper be used in a power-open configuration?
No, this model is a power closed/spring return open (normally open) unit. If your application requires a normally closed damper, you must specify a power-open model or a field-reversible actuator where compatible.
What is the maximum static pressure rating for this parallel blade damper?
The ZD series is rated for a maximum static pressure of 1.0" WC, making it suitable for most residential and light commercial forced-air zoning systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
