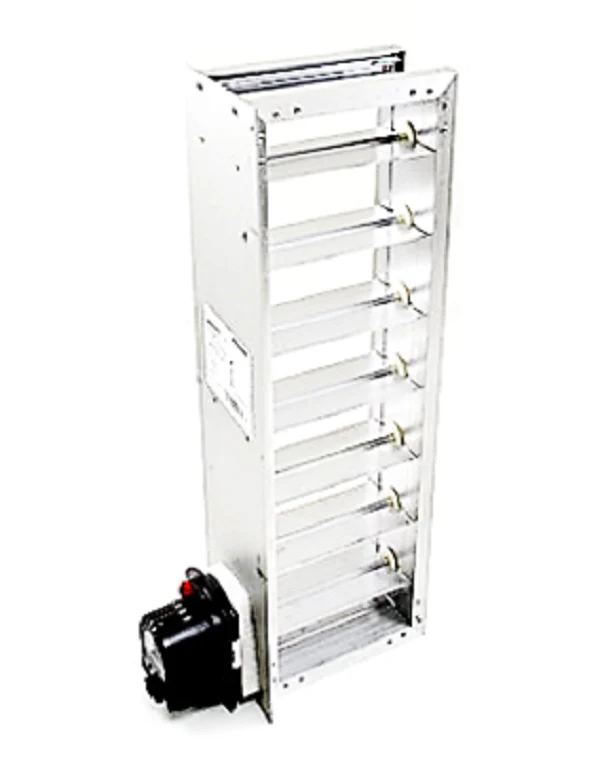

Resideo ZD8X22TZ Damper
The Resideo ZD8X22TZ is a heavy-duty, 8" Wide X 22" High parallel blade zone damper engineered for precise airflow management within TrueZONE and other forced-air zoning systems. Built with a rugged extruded aluminum frame and blades, this rectangular damper utilizes a 24Vac synchronous motor mounted on the 22" side to provide high-torque performance under static pressure. The ZD8X22TZ/U is a power closed/spring return open (normally open) unit, ensuring fail-safe operation by defaulting to the open position during power loss to maintain system circulation.
Contractors rely on this HVAC zone damper for its low leakage design and simple 2-wire installation. The integrated mechanical visual position indicator allows for immediate verification of blade status, while adjustable range stops provide field-flexibility to meet specific CFM requirements. This replacement zone damper motor assembly is tested for high-cycle reliability in residential and light commercial applications.
Key Benefits- Fail-Safe Operation: The normally open spring return motor ensures air continues to circulate if the control system loses power.
- Precision Construction: Extruded aluminum blades with specialized seals minimize air bypass for maximum energy efficiency.
- Robust Actuator: The heavy-duty 24V synchronous motor provides 71 in-oz of torque for consistent, smooth 90-degree travel.
- Streamlined Installation: Designed specifically for the Honeywell TrueZONE panel, featuring a simple 2-wire terminal block and status LED indication.
Is the motor replaceable without removing the entire duct assembly?
Yes, the Resideo damper motor can generally be serviced or replaced independently of the aluminum frame, though verifying the bracket alignment with the 22-inch mounting side is critical for proper operation.
Can I use this damper with other brands of zoning controllers?
While optimized for Honeywell Home zoning systems, this 24V HVAC damper is compatible with most standard 24Vac zoning panels that support power-closed/spring-open logic.
What is the fail-safe position for the Resideo ZD8X22TZ?
This model is Normally Open (NO). It requires power to drive the blades closed and uses a mechanical spring to return them to the open position when power is removed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
