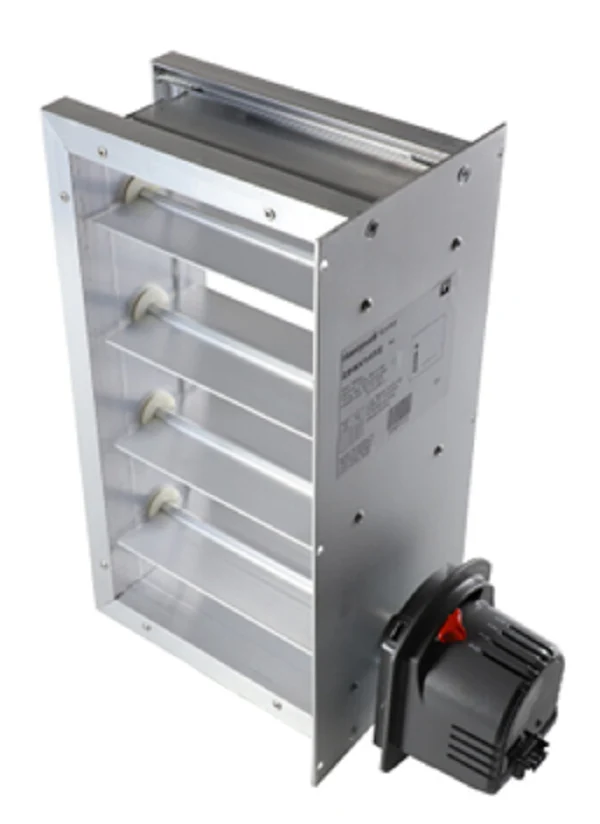

Resideo ZD8X14TZ Damper
The Resideo ZD8X14TZ is a professional-grade rectangular zone damper engineered for reliable airflow management in high-static HVAC systems. Constructed from heavy-duty extruded aluminum with parallel blade action, the ZD8X14TZ is designed for low-leakage performance (less than 1% at 0.5 in. WC) and quiet operation. The unit features a 24Vac synchronous motor mounted on the 14-inch side, utilizing a power-closed / spring-return open fail-safe configuration. This normally-open design ensures that airflow remains unobstructed in the event of a power loss, maintaining system safety. The motor provides a robust 71 in-oz torque rating and includes a mechanical visual position indicator for rapid status diagnostic in the field. With a simple two-wire installation and integrated Kevlar gearing, this 8" x 14" damper is fully compatible with Honeywell TrueZONE and other forced-air electronic zoning panels.
Key Benefits
- High-Efficiency Air Control: Designed with parallel blades and side seals to minimize bypass air and optimize zoning system pressure management.
- Mechanical Position Indicator: Provides technicians with immediate visual confirmation of the damper position without requiring a multimeter.
- Robust Actuator: The synchronous 24V motor includes adjustable range stops, allowing for precise airflow balancing and field customization.
- Superior Construction: The extruded aluminum frame and blades offer corrosion resistance and long-term structural integrity in varied HVAC environments.
- Fast Installation: A simplified 2-wire terminal block configuration reduces labor time during zone damper retrofits or new construction.
Common Questions
Is this damper normally open or normally closed?
The Resideo ZD8X14TZ is a fail-safe, normally open (spring-return open) damper. It requires 24Vac power to drive the motor to the closed position.
Can the motor be moved to the 8-inch side?
No, for this specific model Number, the motor is factory-mounted on the 14-inch side. If your duct configuration requires a motor on the 8-inch side, you would need the ZD14X8TZ.
What is the maximum static pressure rating for this unit?
The ZD series is rated for a maximum static pressure of 1.0 inch WC, making it suitable for most residential and light commercial forced-air zoning applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
