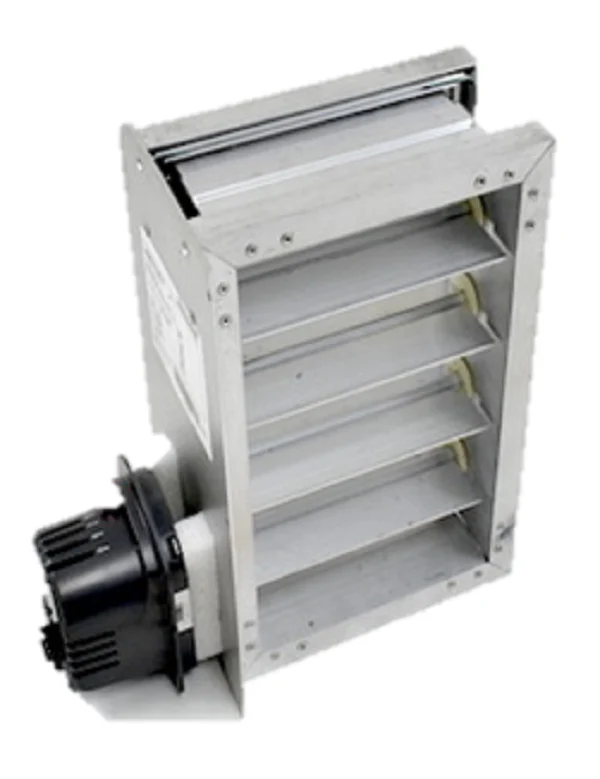

Resideo ZD8X12TZ Damper
For high-performance air distribution, the Resideo ZD8X12TZ Damper provides precise control in commercial and residential forced air zoning systems. This 8" wide x 12" high rectangular zone damper features a parallel blade damper design for low-leakage performance, ensuring maximum system efficiency. Built with a heavy-duty extruded aluminum frame, it uses a 24Vac synchronous motor mounted on the 12" side, functioning as a power closed spring return open unit. This fail-safe configuration is a standard requirement for contractors installing Honeywell TrueZONE and other major electronic zoning panels.
The ZD8X12TZ/U is engineered for streamlined HVAC zone damper installation. The two-wire connection to the M847D-ZONE motor simplifies field wiring, while the mechanical visual position indicator allows for immediate status verification. Rated for static pressures up to 1.0 in. wc, this ZD series assembly includes adjustable range stops for fine-tuning airflow. Its quiet operation and high-torque motor make it a reliable choice for maintaining setpoint temperatures across multiple zones.
Key Benefits:
- Normally Open Operation: Fail-safe spring-return ensures airflow is maintained in the event of a power loss.
- Precision Airflow Control: Parallel blade design results in less than 1% leakage at 0.5 in. wc, reducing energy waste.
- Contractor-Grade Durability: Solid aluminum construction resists corrosion and provides long-term structural integrity.
- Simplified Integration: Fully compatible with the Resideo TrueZONE ecosystem and most 24V control boards.
- Flexible Mounting: Multi-poise motor allows for installation in any orientation to fit tight duct runs.
Common Questions:
- Can I use this with a 3-wire system? This is a 2-wire motor (M1, M6). While an optional M4 terminal exists for LED indication, it is primarily designed for 2-wire spring-return applications.
- What happens if the motor fails? Since it is spring-return open, the blades will default to the open position, preventing a total loss of airflow to the zone.
- Is the motor replaceable? Yes, the M847D-ZONE actuator can be swapped without removing the entire damper from the ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
