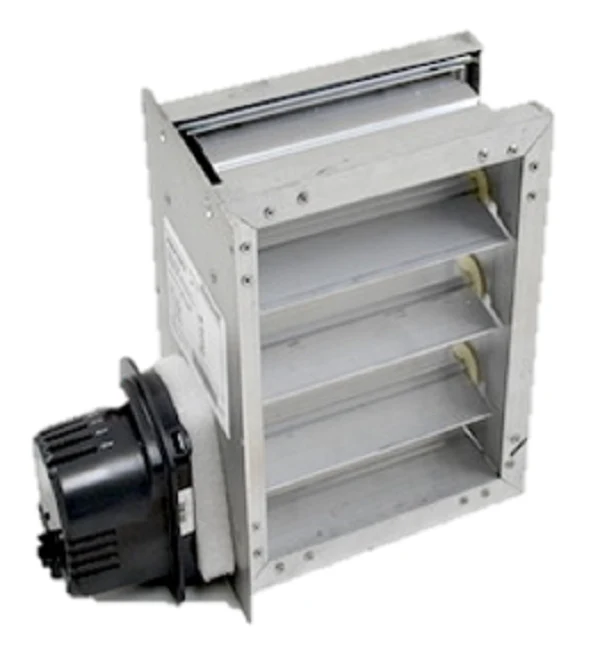

Resideo ZD8X10TZ Damper
The Resideo ZD8X10TZ is a professional-grade rectangular zone damper engineered for precise airflow management in multizone forced-air systems. Measuring 8" wide by 10" high, this parallel blade zone damper features a heavy-duty extruded aluminum frame and blades to minimize static pressure and ensure long-term structural integrity. This model is configured as power closed/spring return open, providing a fail-safe normally-open position that maintains circulation in the event of a power loss. The 24Vac synchronous motor is side-mounted on the 10" dimension and utilizes Kevlar gearing to significantly extend the component's service life compared to standard plastic gears. Designed for seamless integration with Honeywell TrueZONE panels and other 24V electronic zoning systems, the ZD8X10TZ includes built-in adjustable range stops and a mechanical visual position indicator to streamline balancing and system diagnostics for the technician.
- Parallel Blade Performance: Designed for low-leakage airflow control and reduced turbulence in rectangular ductwork.
- High-Torque 24V Motor: Features an 8VA synchronous motor with 71 in-oz of torque for reliable blade actuation.
- Fail-Safe Operation: The spring-return mechanism ensures the damper defaults to the open position during power interruptions.
- Durable Construction: Extruded aluminum components resist corrosion and withstand high-velocity air streams.
- Simplified Wiring: Two-wire installation (M1/M6) with an optional third terminal (M4) for LED status feedback.
Common Questions
Is the motor replaceable without removing the entire damper?
Yes, the 24V motor is factory-assembled but can be replaced in the field by loosening the set screw on the coupling, allowing for rapid servicing without breaking into the duct seal.
How do I adjust the minimum or maximum air gap?
The actuator includes adjustable range stops. You can set the travel limit to allow a specific percentage of bleed air even when the zone is not calling, which is useful for maintaining minimum ventilation requirements.
Can this damper be installed in any orientation?
The ZD8X10TZ is multi-poise, meaning it can be mounted with the motor on the side or bottom of the duct to accommodate tight installation clearances in residential or light commercial attics and basements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $196.10
-65%$196.10
$68.63Resideo ZD8X10TZ Damper
