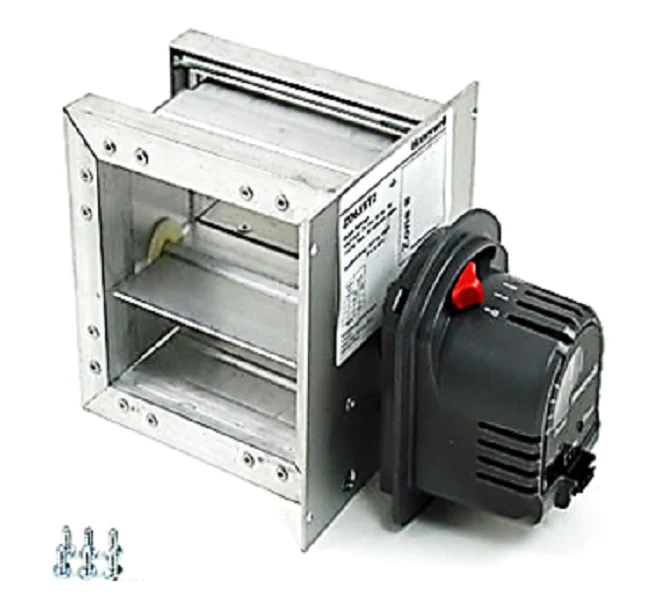

Resideo ZD6X6TZ Damper
The Resideo ZD6X6TZ is a high-performance 6x6 zone damper engineered for precision airflow management in forced air zoning systems. Built with a heavy-duty extruded aluminum frame and parallel blades, this square zone control damper minimizes leakage and ensures quiet operation under high-static conditions. Unlike standard round dampers, the parallel blade damper design provides superior control for bypass or zone-specific applications in rectangular ductwork.
This normally open zone damper utilizes a reliable 24Vac synchronous motor featuring a power closed spring return fail-safe. In the event of a power loss, the internal spring mechanism automatically returns the blades to the open position, ensuring continuous airflow. The TrueZONE damper also includes adjustable range stops for custom flow calibration and a mechanical visual position indicator for rapid troubleshooting in the field. Designed for HVAC zone control, the actuator provides high torque (71 in-oz) and is compatible with the Resideo TrueZONE panel and other 24V electronic zoning systems.
Key Benefits- Solid Construction: Features a riveted and screwed extruded aluminum frame for long-term structural integrity.
- Fail-Safe Logic: Power closed / spring return open operation maintains airflow during power interruptions.
- Low Leakage Design: Integrated extruded blade seals significantly reduce air bypass when the zone is inactive.
- Simplified Installation: Two-wire 24V synchronous motor connection streamlines wiring for HVAC contractors.
- Field Adjustability: Adjustable range stops allow technicians to fine-tune minimum and maximum blade positions.
Is the motor on the Resideo ZD6X6TZ replaceable?
Yes, the 24V actuator can be swapped in the field if necessary, though the synchronous motor's robust gearing is designed for high cycle counts.
Can this damper be mounted in any orientation?
Yes, the ZD series dampers are engineered for flexible mounting, though it is standard practice to install the actuator on the side for easier access to the visual indicator.
What happens if the power goes out?
Because this is a power closed / spring return open model, it will default to the open position, ensuring the zone does not overheat or overcool during a system failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
