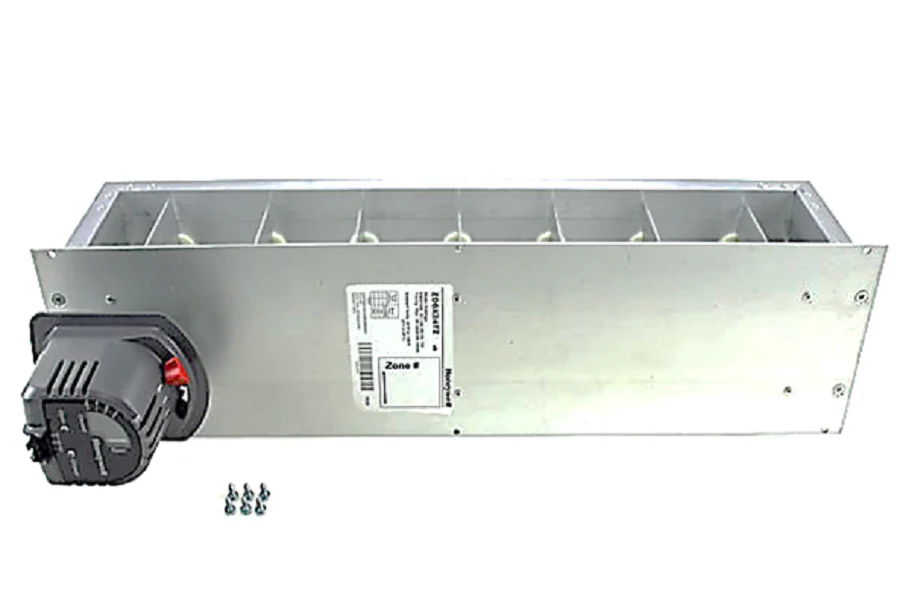

Resideo ZD6X24TZ Damper
The Resideo ZD6X24TZ Damper is a professional-grade 6x24 zone damper designed for precision airflow management in forced-air zoning systems. Built with a heavy-duty extruded aluminum frame and parallel blades, this rectangular damper ensures high performance with a low-leakage design (less than 1% at 0.5 in. WC). The system utilizes a 24VAC synchronous motor that operates as power closed/spring return open, making it a reliable fail-safe solution for zones requiring a normally open state. The actuator is mounted on the 24-inch side, facilitating easy integration into your existing HVAC ductwork and compatibility with TrueZONE panels. For contractors, the riveted and screwed corners combined with adjustable range stops provide a rugged, field-adjustable component that simplifies the balancing of residential or light commercial systems.
Key Benefits for Technicians:- Extruded Aluminum Construction: Corrosion-resistant frame and blades provide long-term structural integrity in high-humidity plenum environments.
- Normally Open Fail-Safe: The spring return mechanism ensures the damper returns to the open position during power loss, preventing system static pressure spikes.
- Low Leakage Seals: Precision-engineered parallel blade seals minimize air bypass to unoccupied zones, improving overall system efficiency.
- Easy 2-Wire Installation: Simplified wiring to Honeywell TrueZONE or third-party 24V zone control panels reduces labor time on the job site.
- Visual Position Indicator: External mechanical indicator allows for rapid diagnostic checks of the damper blade position without duct disassembly.
Is the ZD6X24TZ compatible with all zoning panels?
This HVAC zone damper is designed for universal 24VAC compatibility, though it performs optimally when paired with Resideo TrueZONE or similar electronic control panels that support 2-wire power-close logic.
Can the synchronous motor be replaced without removing the damper?
Yes, the synchronous motor is factory-mounted but can be field-serviced or replaced by loosening the socket head set screw, allowing for maintenance without breaching the ductwork integrity.
What is the maximum static pressure rating for this unit?
The parallel blade design is rated for operation in systems with a maximum static pressure up to 1.0 in. WC, ensuring reliability in standard residential and light commercial airflow applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
