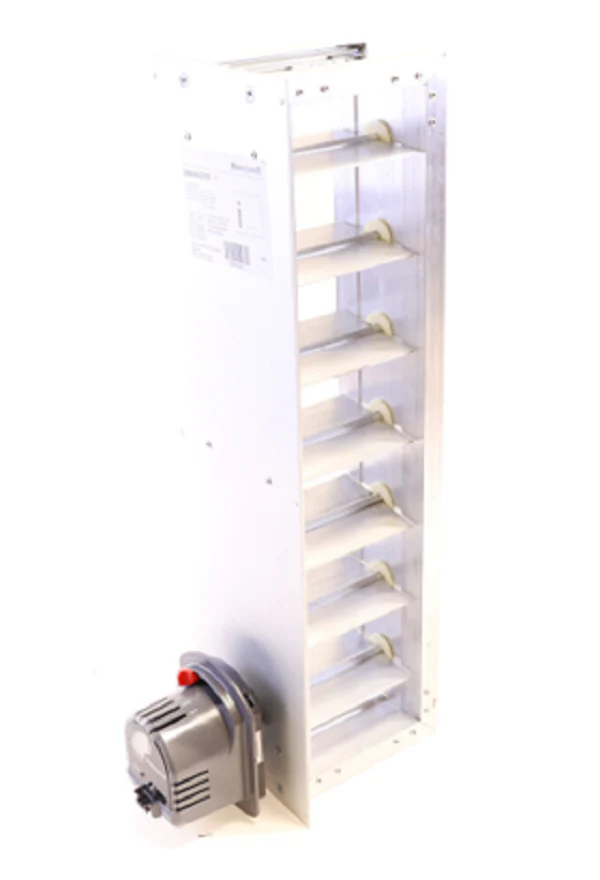

Resideo ZD6X22TZ Damper
The Resideo ZD6X22TZ Damper is a professional-grade parallel blade zone damper engineered for precise airflow control within forced-air HVAC systems. Featuring a heavy-duty extruded aluminum frame and blades, this 6" W x 22" H rectangular damper is designed for long-term durability in high-demand residential and light commercial environments. The 24Vac synchronous motor is mounted on the 20" side, providing a reliable power closed/spring return open fail-safe operation. This ensures that in the event of a power loss, the zone defaults to the open position to prevent equipment high-limit trips. Integrated with Honeywell Home TrueZONE and other electronic zoning panels, the ZD6X22TZ utilizes a two-wire installation with adjustable range stops for custom air balancing. Its parallel blade design and extruded seals minimize leakage and bypass air, maintaining system static pressure up to 1.0 in. wc while ensuring exceptionally quiet operation during transitions.
Key Benefits for Technicians:
- Fail-Safe Reliability: The spring return open configuration provides a critical safety default for zone control systems.
- Rugged Construction: Built with extruded aluminum blades and reinforced riveted corners to resist warping and corrosion.
- Simplified Wiring: Features easy-access push terminals for rapid 24V HVAC zoning integration.
- Optimized Performance: Parallel blade action and mechanical position indicators allow for precise visual verification of airflow status.
- Installation Flexibility: Rated for ambient temperatures up to 140°F and suitable for multi-poise mounting in any duct orientation.
Common Questions:
Is the motor on the ZD6X22TZ field-replaceable?
Yes, the synchronous 24V actuator can be replaced without removing the entire damper assembly from the ductwork, minimizing downtime for the end-user.
Can this damper be used for fresh air intake?
No, since this is a power closed/spring return open model, it is designed strictly for zone control. Fresh air applications typically require a power-open/spring-closed model like the EARD series to prevent unconditioned air from entering the building during power failures.
Does it support LED status indication?
The motor terminals include an M4 option for wiring a remote LED indicator to signal when the damper has reached its closed position.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
