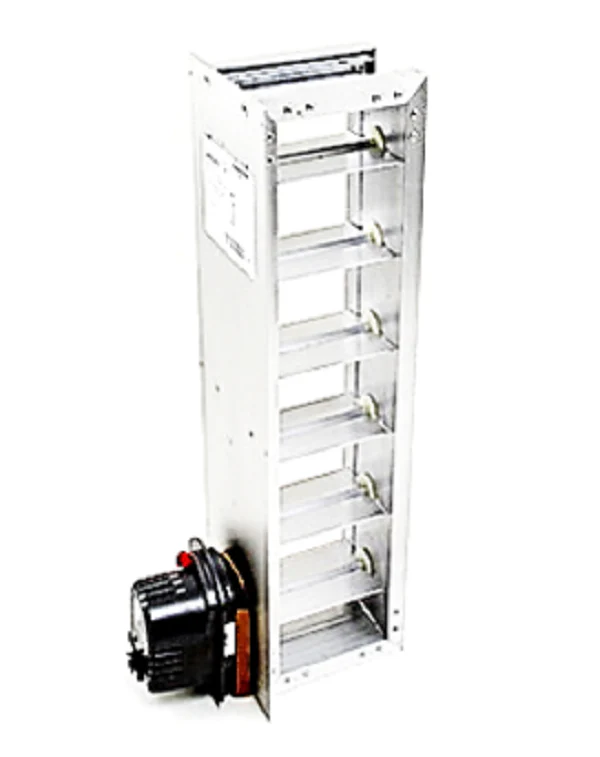

Resideo ZD6X20TZ Damper
The Resideo ZD6X20TZ is a 6-inch by 20-inch rectangular zone damper engineered for precision airflow control in residential and light commercial forced-air systems. As a parallel blade zone damper, it utilizes a 24Vac synchronous motor rated at 6VA, providing a high-torque 71 inch-ounce output for reliable blade positioning. This specific model follows a power closed/spring return open logic, functioning as a normally open damper. In the event of a power loss, the internal spring mechanism ensures the damper returns to the open position, making it a "fail-safe" choice for maintaining airflow. The parallel blade design is constructed from extruded aluminum, which significantly reduces air leakage and limits pressure drop to less than 0.0329" WC at 800 FPM. For contractors, the two-wire installation—with an optional third terminal for M4 LED indication—simplifies integration with Honeywell TrueZONE and other electronic zoning panels.
Key Benefits
- Mechanical Position Indicator: Provides a visual confirmation of the damper blade status to assist with rapid system diagnostics.
- High Static Pressure Rating: Tested to operate efficiently in systems up to 1.0" WC, ensuring compatibility with high-velocity HVAC equipment.
- Adjustable Range Stops: Includes simplified mechanical stops to customize the minimum and maximum closed positions for fine-tuned zone balancing.
- Rugged Aluminum Construction: The extruded aluminum frame and blades offer superior corrosion resistance and professional durability.
- Synchronous Motor Actuator: The side-mounted 24V zone damper motor delivers quiet operation with a 30-second power stroke and 10-second spring return.
Common Questions
How do you wire the Resideo ZD6X20TZ to a zoning panel?
This 24V HVAC damper typically requires two wires: connect the 24Vac hot to terminal M1 and the common to terminal M6. Applying power drives the motor to the closed position. You can also connect terminal M4 for an optional LED status light.
Is the motor on the 6" side or the 20" side?
Per Resideo nomenclature, the motor is always mounted on the second dimension listed. For the ZD6X20TZ, the motor is mounted on the 20-inch side of the assembly.
Can this damper be used for fresh air intake?
No, because the ZD series is designed as power closed/spring return open, it is not suitable for fresh air applications that require a normally closed configuration. For makeup air, use the EARD series instead.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
