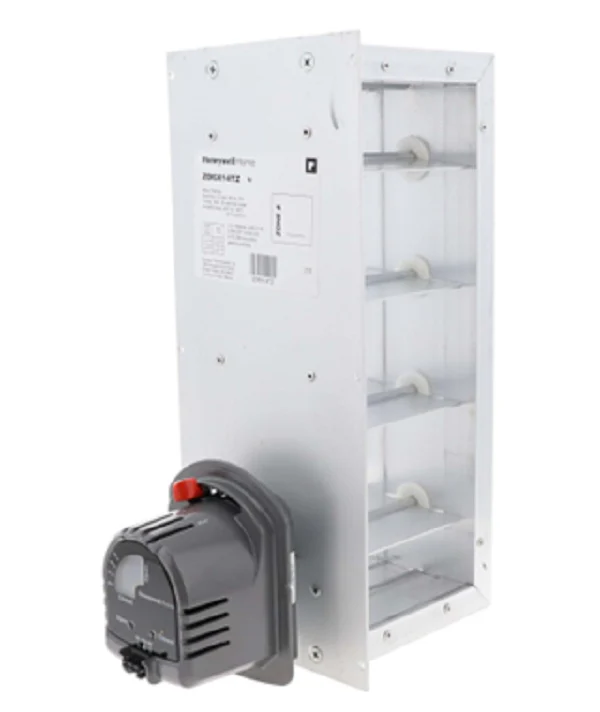

Resideo ZD6X14TZ Damper
For your next residential or light commercial zoning project, the Resideo ZD6X14TZ provides a rugged and reliable solution for managing airflow in rectangular ductwork. As a veteran in the field, you know that HVAC zone dampers are the backbone of a balanced forced-air system. This 6" x 14" parallel blade zone damper features high-grade extruded aluminum construction with high-temperature plastic components, ensuring it handles static pressures up to 1.0" WC without the typical "Marketing Fluff" noise or blade chatter. The 24Vac synchronous motor is factory-mounted on the 14" side and operates on a power closed, spring return open logic, providing a fail-safe position that maintains circulation even during a power loss. Designed for seamless integration with Honeywell TrueZONE panels, this rectangular duct damper utilizes a 90-degree angular rotation and mechanical visual position indicators to simplify your checkout and commissioning process.
Key Benefits for Contractors:- Extruded aluminum blades and parallel-blade design ensure ultra-low leakage (less than 1% at 0.5" WC) for maximum efficiency.
- Built-in adjustable range stops allow you to fine-tune minimum and maximum airflow positions directly at the motor.
- Internal all-metal drive train gears offer superior longevity compared to older plastic-geared models.
- The spring-return motor ensures the zone stays open if low-voltage power is interrupted, preventing equipment freeze-ups or limit trips.
- Simplified two-wire installation (M1 and M6) with an optional M4 terminal for LED status monitoring.
Is the ZD6X14TZ compatible with legacy 3-wire zoning panels?
Yes, while optimized for TrueZONE panels, these 24V dampers are backwards compatible with most 24Vac systems that provide a constant signal to close. If your panel requires a power-open/power-close signal, check the actuator requirements before wiring.
Can I mount this damper in a vertical duct configuration?
Absolutely. This unit can be installed in any orientation. However, for horizontal runs, we recommend mounting the motor on the side or top to prevent potential condensate from affecting the motor housing.
How do I adjust the airflow if the room is over-conditioned when the damper is closed?
You can utilize the mechanical range stop on the actuator to allow a small amount of bypass air, or conversely, ensure the blades are fully seated to stop all flow in that specific zone.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
