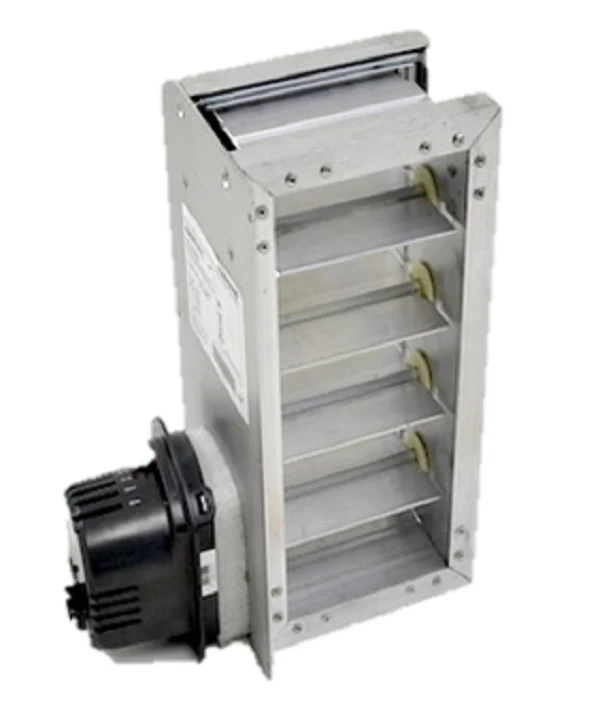

Resideo ZD6X12TZ Damper
The Resideo ZD6X12TZ Damper is a 6 in. x 12 in. Parallel Blade Damper engineered for rigorous forced air zoning applications. Featuring a 24Vac power closed/spring return open configuration, this unit ensures high-reliability fail-safe operation by maintaining 100% airflow during power loss. The synchronous motor is robustly side-mounted on the 12-inch dimension, enabling a low-profile fit for tight HVAC zone control installs. Built with an extruded aluminum frame and blades, it manages static pressures up to 1.0 in. w.c. with minimal leakage. The parallel blade zone damper design provides superior airflow regulation and simplified two-wire installation. For contractors, the adjustable range stops allow for precise damper actuator calibration, ensuring customized air balancing across the entire Honeywell TrueZONE system. This technical-grade component is the standard for professional automatic duct dampers in residential and light commercial settings.
Key Benefits:- Fail-Safe Performance: Internal spring return mechanism automatically opens the damper upon power loss to prevent equipment overheating or coil freeze-up.
- Quiet, Efficient Operation: The high-torque synchronous motor provides silent transition between positions while the parallel blades ensure low leakage.
- Serviceable Construction: High-temperature plastic and all-metal gear train provide long-term reliability in demanding HVAC ducting environments.
- Universal Compatibility: Seamlessly integrates with Honeywell Home TrueZONE panels and most 24V forced-air zoning controllers.
- Can this damper be installed in any orientation? Yes, the ZD6X12TZ is designed for flexible installation; the motor can be positioned on either the side or the bottom of the ductwork without affecting airflow control.
- What does "Power Closed/Spring Return" mean for my system? This means the damper requires 24V power to close and block airflow. Without power, a spring pulls the blades open, making it ideal for systems requiring a normally-open zone damper.
- Does this model include a position indicator? Yes, it features a mechanical visual position indicator allowing technicians to verify the damper blade status at a glance without dismantling any ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $209.47
-65%$209.47
$73.31Resideo ZD6X12TZ Damper
The Resideo ZD6X12TZ Damper is a 6 in. x 12 in. Parallel Blade Damper engineered for rigorous forced air zoning applications. Featuring a 24Vac power closed/spring return open configuration, this unit ensures high-reliability fail-safe operation by maintaining 100% airflow during power loss. The synchronous motor is robustly side-mounted on the 12-inch dimension, enabling a low-profile fit for tight HVAC zone control installs. Built with an extruded aluminum frame and blades, it manages static pressures up to 1.0 in. w.c. with minimal leakage. The parallel blade zone damper design provides superior airflow regulation and simplified two-wire installation. For contractors, the adjustable range stops allow for precise damper actuator calibration, ensuring customized air balancing across the entire Honeywell TrueZONE system. This technical-grade component is the standard for professional automatic duct dampers in residential and light commercial settings.
Key Benefits:- Fail-Safe Performance: Internal spring return mechanism automatically opens the damper upon power loss to prevent equipment overheating or coil freeze-up.
- Quiet, Efficient Operation: The high-torque synchronous motor provides silent transition between positions while the parallel blades ensure low leakage.
- Serviceable Construction: High-temperature plastic and all-metal gear train provide long-term reliability in demanding HVAC ducting environments.
- Universal Compatibility: Seamlessly integrates with Honeywell Home TrueZONE panels and most 24V forced-air zoning controllers.
- Can this damper be installed in any orientation? Yes, the ZD6X12TZ is designed for flexible installation; the motor can be positioned on either the side or the bottom of the ductwork without affecting airflow control.
- What does "Power Closed/Spring Return" mean for my system? This means the damper requires 24V power to close and block airflow. Without power, a spring pulls the blades open, making it ideal for systems requiring a normally-open zone damper.
- Does this model include a position indicator? Yes, it features a mechanical visual position indicator allowing technicians to verify the damper blade status at a glance without dismantling any ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
