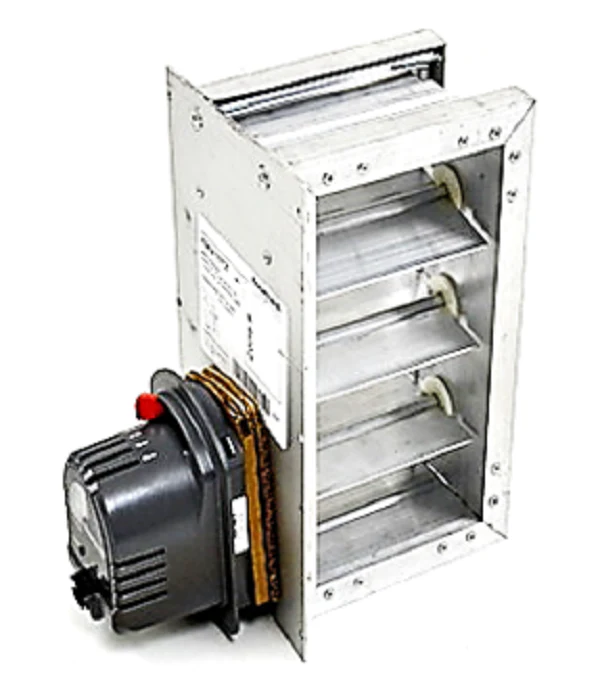

Resideo ZD6X10TZ Damper
The Resideo ZD6X10TZ Parallel Blade Zone Damper is a contractor-grade solution engineered for rectangular duct zoning. This 6" Wide x 10" High unit features a power-closed, spring-return open configuration, making it the standard choice for "fail-safe" normally-open airflow requirements. Built with a rugged extruded aluminum frame and parallel blades, it maintains a low-leakage seal (less than 1% at 0.5 in. WC) while offering high-performance HVAC airflow control. The integrated 24Vac synchronous motor is mounted on the 10" side, specifically optimized for legacy Honeywell TrueZONE panels and other electronic zoning systems. Professional installers prioritize the ZD6X10TZ for its simplified two-wire setup via push terminals, with an optional M4 terminal for LED status indication. With an 8VA power rating and adjustable mechanical range stops, this motorized zone damper ensures precise static pressure management and reliable field performance under high-demand forced air zoning conditions.
Key Benefits- Fail-Safe Operation: The spring-return mechanism defaults to an open position upon loss of power, preventing system freeze-ups.
- Durable Construction: Features an extruded aluminum frame with riveted and screwed corners for maximum structural integrity.
- Low Maintenance: Equipped with a high-torque 24V motor and Teflon-coated springs for long-term cycling reliability.
- Versatile Install: Rated for static pressures up to 1 in. WC and supports mounting in any orientation within the ductwork.
- Precise Commissioning: Built-in mechanical position indicator and range stops allow for exact airflow balancing during checkout.
Is the motor replaceable without removing the entire damper?
Yes, the synchronous motor is direct-coupled and can be swapped in the field by loosening the set screw, minimizing downtime during service calls.
Can I use this damper with 3-wire zoning panels?
While designed as a 2-wire power-close/spring-open unit (M1/M6), it can be integrated into most 3-wire systems with proper wiring or by using the optional M4 terminal for LED indication.
What is the dimensions of the actual duct insert?
Industry standard for these units is 5/32" smaller than the nominal listed size to ensure a proper fit without jamming the parallel blades against the duct wall.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $205.20
-65%$205.20
$71.82Resideo ZD6X10TZ Damper
The Resideo ZD6X10TZ Parallel Blade Zone Damper is a contractor-grade solution engineered for rectangular duct zoning. This 6" Wide x 10" High unit features a power-closed, spring-return open configuration, making it the standard choice for "fail-safe" normally-open airflow requirements. Built with a rugged extruded aluminum frame and parallel blades, it maintains a low-leakage seal (less than 1% at 0.5 in. WC) while offering high-performance HVAC airflow control. The integrated 24Vac synchronous motor is mounted on the 10" side, specifically optimized for legacy Honeywell TrueZONE panels and other electronic zoning systems. Professional installers prioritize the ZD6X10TZ for its simplified two-wire setup via push terminals, with an optional M4 terminal for LED status indication. With an 8VA power rating and adjustable mechanical range stops, this motorized zone damper ensures precise static pressure management and reliable field performance under high-demand forced air zoning conditions.
Key Benefits- Fail-Safe Operation: The spring-return mechanism defaults to an open position upon loss of power, preventing system freeze-ups.
- Durable Construction: Features an extruded aluminum frame with riveted and screwed corners for maximum structural integrity.
- Low Maintenance: Equipped with a high-torque 24V motor and Teflon-coated springs for long-term cycling reliability.
- Versatile Install: Rated for static pressures up to 1 in. WC and supports mounting in any orientation within the ductwork.
- Precise Commissioning: Built-in mechanical position indicator and range stops allow for exact airflow balancing during checkout.
Is the motor replaceable without removing the entire damper?
Yes, the synchronous motor is direct-coupled and can be swapped in the field by loosening the set screw, minimizing downtime during service calls.
Can I use this damper with 3-wire zoning panels?
While designed as a 2-wire power-close/spring-open unit (M1/M6), it can be integrated into most 3-wire systems with proper wiring or by using the optional M4 terminal for LED indication.
What is the dimensions of the actual duct insert?
Industry standard for these units is 5/32" smaller than the nominal listed size to ensure a proper fit without jamming the parallel blades against the duct wall.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
