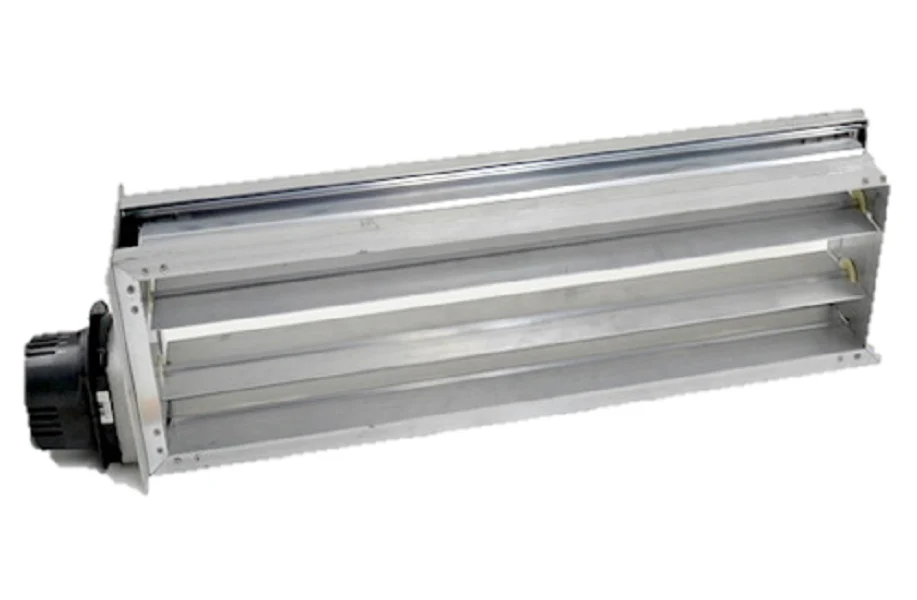

Resideo ZD28X8TZ Damper
The Resideo ZD28X8TZ is a heavy-duty, 28" x 8" parallel blade zone damper engineered for precise airflow management in high-static pressure environments. Built with a rugged extruded aluminum frame and reinforced blades, this rectangular damper utilizes a 24Vac synchronous motor to deliver reliable two-position control. The power closed/spring return open configuration ensures a fail-safe normally-open state, maintaining critical ventilation during power loss. Designed for seamless integration with the Honeywell TrueZONE system and other electronic zoning panels, the ZD28X8TZ features high-performance Kevlar gearing that significantly reduces mechanical wear compared to standard nylon gears. The synchronous motor is mounted on the 8-inch side, and the assembly includes adjustable range stops for fine-tuning minimum and maximum air bleeds. With its parallel blade design for low-leakage performance and simple two-wire installation, this damper is the professional choice for contractors requiring durable, high-capacity HVAC zone control.
Key Benefits:- Fail-Safe Operation: The spring return open logic ensures the zone remains open for emergency bypass or ventilation if power is interrupted.
- Superior Durability: Equipped with industrial-grade Kevlar gears and an extruded aluminum frame to withstand continuous cycling in demanding ductwork.
- Low-Leakage Parallel Blades: Engineered for tight seals and efficient air distribution, maximizing the performance of forced air zoning systems.
- Visual Diagnostics: Includes a mechanical position indicator on the motor, allowing technicians to verify damper status at a glance without a multimeter.
- Is the motor on the ZD28X8TZ replaceable? Yes, the 24V synchronous motor can be swapped out if necessary. However, the integrated Kevlar gearing is designed to outlast typical zoning actuators.
- Can this damper be installed vertically? This Resideo zone damper can be installed in any orientation. The motor is factory-mounted on the 8" side, so ensure clear access for wiring and adjustable range stop calibration.
- Will this work with third-party zoning panels? While optimized for the TrueZONE panel, the standard 24Vac two-wire setup is compatible with most HVAC zoning controllers that support power-closed actuators.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
