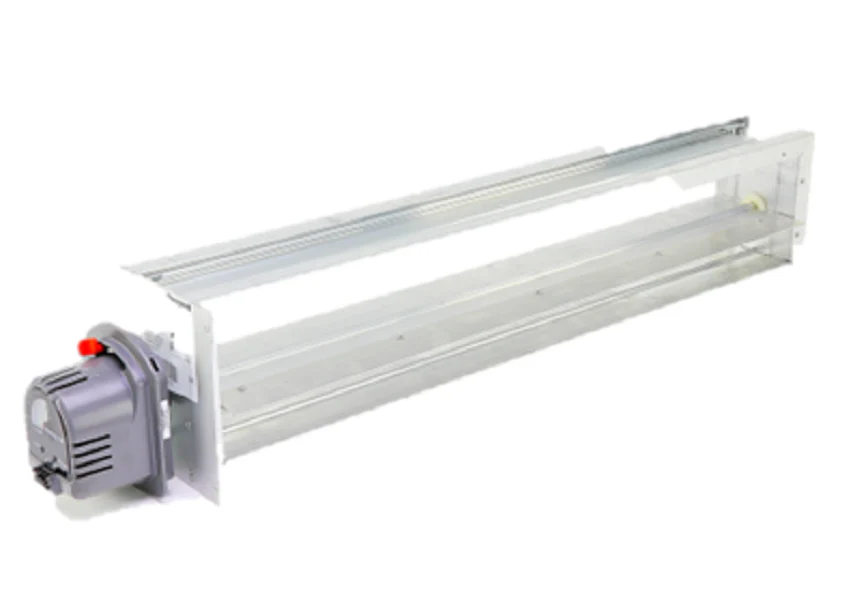

Resideo ZD28X6TZ Damper
The Resideo ZD28X6TZ is a professional-grade parallel blade zone damper engineered for high-static residential and light commercial forced-air systems. Measuring 28 inches wide by 6 inches high, this rectangular unit utilizes an extruded aluminum frame and blades to ensure structural rigidity and reduced bypass leakage. The integrated 24Vac synchronous motor is side-mounted on the 6-inch dimension, providing a compact footprint for tight plenum installations. As a power closed/spring return open (normally open) component, this damper serves as a fail-safe solution, ensuring maximum airflow in the event of a power loss. Designed for seamless integration with Honeywell TrueZONE panels and other electronic zoning controllers, the ZD28X6TZ features a mechanical visual position indicator for rapid troubleshooting and adjustable range stops to fine-tune HVAC airflow control. Its two-wire installation and riveted construction make it a field-proven choice for contractors requiring reliable, long-term zone control dampers.
- Fail-Safe Operation: Normally open configuration ensures the system remains operable during power outages.
- Professional Construction: Corrosion-resistant extruded aluminum frame with riveted corners for industrial-strength durability.
- Precision Sealing: Parallel blade design provides a tight seal to minimize thermal loss and improve system efficiency.
- Simplified Integration: Direct-drive 24V motor requires only two wires (M1 and M6) for standard operation.
- Visual Diagnostics: Built-in position indicator allows technicians to verify damper status at a glance without dismantling ductwork.
Common Questions
Can the motor be moved to the 28-inch side?
No, the ZD series motors are factory-mounted on the second dimension specified; for this model, the actuator is fixed to the 6-inch side to maintain mechanical leverage and timing.
Is this damper compatible with third-party zoning panels?
Yes, while optimized for the TrueZONE ecosystem, it is compatible with any 24Vac zoning system that supports power-closed, spring-return actuators.
Can I install this in a vertical duct run?
The ZD28X6TZ is designed for multi-orientation installation and can be mounted in any position as long as the internal blades rotate freely without obstruction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $289.43
-65%$289.43
$101.30Resideo ZD28X6TZ Damper
