Resideo ZD28X14TZ Damper

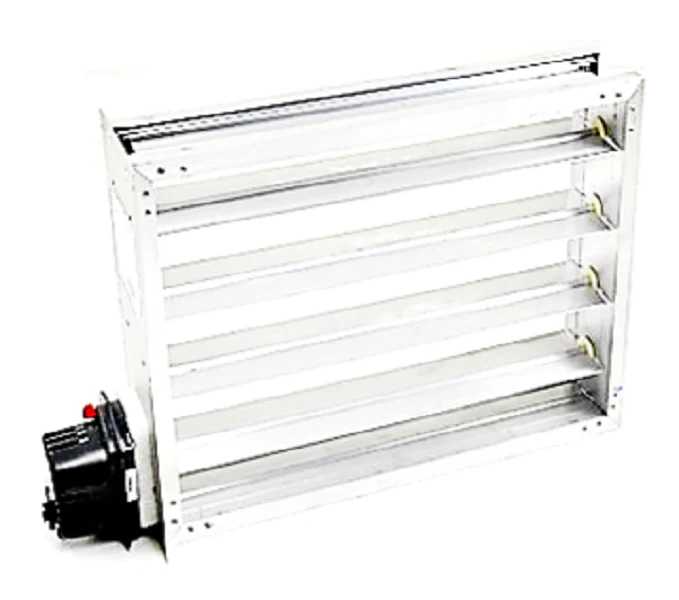

The Resideo ZD28X14TZ is a 28" x 14" heavy-duty parallel blade zone damper designed for professional-grade forced air zoning. Built with a rigid extruded aluminum frame and blades, this 24Vac zone damper ensures long-term structural integrity and low-leakage performance, maintaining less than 1% leakage at 0.5" WC. The 28-inch width and 14-inch height configuration features a side-mounted spring-return damper actuator that provides fail-safe normally open operation. This setup is ideal for light commercial and residential applications where airflow must be maintained during power loss. The synchronous motor delivers a minimum of 71 in-oz of torque, driving the internal Kevlar gears for smooth, two-position control. This rectangular zone damper integrates seamlessly with the Honeywell TrueZONE system and other 24V controllers. For precision balancing, the unit includes adjustable range stops, allowing technicians to fine-tune the minimum and maximum blade positions directly at the actuator.
Key Benefits- Fail-Safe reliability: The power closed spring return open configuration ensures the zone remains open if power is interrupted, preventing high static pressure build-up.
- Enhanced Durability: Engineered with Kevlar gearing and an extruded aluminum frame to withstand the rigors of high-cycle HVAC applications.
- Low Leakage Design: Features parallel blades that close tightly against gaskets to maximize energy efficiency and zone isolation.
- Contractor-Friendly Install: Simple two-wire terminals with an optional M4 terminal for LED position indication; multi-poise mounting allows for installation in any orientation.
Is the motor replaceable without removing the damper?
Yes, the Resideo ZD28X14TZ uses a direct-drive actuator that can be swapped out by loosening the set screw, allowing for efficient field service without breaking into the ductwork.
Can I use this with a third-party zone panel?
While optimized for Honeywell Home zoning systems, this is a standard 24V two-position damper and is compatible with most 24Vac zone control panels on the market.
Does the motor mount on the 28" or 14" side?
Following standard Resideo nomenclature, the actuator is factory-mounted on the second dimension listed, which is the 14-inch side for this specific model.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
