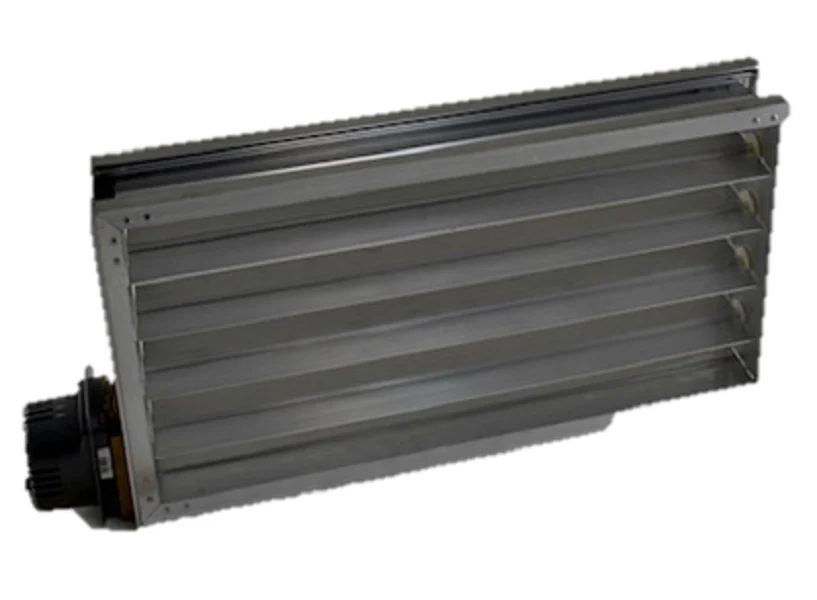

Resideo ZD26X12TZ Damper
The Resideo ZD26X12TZ Damper is a professional-grade, rectangular zone damper designed for precision airflow management in forced air HVAC systems. Built with a heavy-duty extruded aluminum frame and blades, this 26" x 12" unit utilizes a parallel blade configuration to ensure structural rigidity and a low leakage seal during operation. The assembly features a high-torque 24VAC synchronous motor mounted on the 12-inch side, providing a power closed/spring return open fail-safe operation. This ensures that in the event of a power loss, the damper defaults to the open position to maintain ventilation and prevent static pressure spikes within the ductwork.
Engineered for seamless integration with Honeywell TrueZONE panels and other standard electronic zoning controllers, the ZD26X12TZ includes a mechanical visual position indicator for rapid diagnostic checks in the field. The two-wire installation and adjustable range stops allow technicians to fine-tune airflow limits and simplify the commissioning process. With Kevlar gearing for reduced mechanical wear and quiet operation, this damper is the go-to choice for contractors looking for a reliable, long-lasting solution in residential or light commercial zoning applications.
Key Benefits- Parallel Blade Design: Optimized for low-leakage performance and consistent airflow control.
- Fail-Safe Operation: Spring-return open configuration ensures system safety during power failures.
- Rugged Construction: Extruded aluminum blades and riveted corners provide superior durability in high-cycle environments.
- Simplified Wiring: Easy-to-wire two-wire motor terminal block speeds up installation on the job site.
- Precision Diagnostics: Built-in mechanical indicator allows for immediate verification of damper position without specialized tools.
Is this damper compatible with non-Honeywell zoning panels?
Yes, the Resideo ZD26X12TZ utilizes a standard 24V two-position signal, making it compatible with most electronic zoning systems that support spring-return actuators.
Can the motor be moved to the other side of the damper?
No, the motor is factory-mounted on the 12-inch dimension. For HVAC zone control applications requiring the motor on the 26-inch side, you must specify that layout during ordering, as the motor mounting position is fixed.
What happens if the 24V power supply is interrupted?
The internal spring return motor will automatically drive the blades to the fully open (normally open) position, ensuring air continues to circulate through the zone.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
