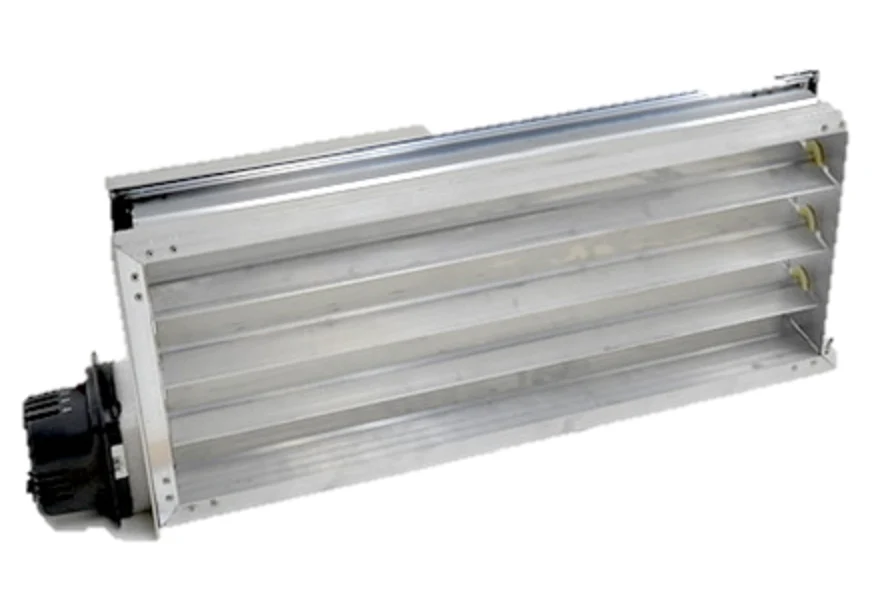

Resideo ZD26X10TZ Damper
The Resideo ZD26X10TZ Damper is a professional-grade, rectangular zone damper designed for high-performance HVAC zoning systems. Built with a parallel blade design and extruded aluminum frame, this unit ensures low leakage performance (less than 1% at 0.5 in. WC) in demanding heating and cooling applications. The 24Vac synchronous motor is side-mounted on the 10-inch dimension, featuring a power closed/spring return open configuration. This normally open damper orientation is a fail-safe standard for many Honeywell TrueZONE and forced air zoning setups, ensuring airflow is maintained if power is lost. Installation is streamlined with a simple two-wire connection (M1 and M6 terminals) and a 90-degree angular rotation. Rated for static pressures up to 1 in. WC, the ZD26X10TZ provides a quiet operation and reliable mechanical visual position indication, making it a staple for contractors looking for dependable hvac air flow control without the need for complex mounting hardware.
- Parallel Blade Performance: Engineered for maximum efficiency and minimal bypass when pressurized in the closed position.
- Fail-Safe Logic: The spring return open motor ensures essential air circulation continues even during power interruptions.
- Contractor-Friendly Install: Features a slip-in design with simplified range stops and a two-wire motor that integrates directly with zone control boards.
- Durable Construction: Heavy-duty extruded aluminum frame resists corrosion and maintains integrity in high-static environments.
Common Questions
Is the motor replaceable without changing the entire damper?
Yes, the M847D-ZONE motor can be swapped out by loosening the Allen set screw, allowing for field repairs without breaking into the ductwork.
What is the typical timing for opening and closing?
The synchronous motor typically takes 30 seconds to power closed and returns to the open position via spring in approximately 10 seconds.
Can this damper be used in high-temperature plenums?
The unit is rated for ambient temperatures up to 140°F, and it is recommended to install it at least three feet from the furnace plenum to ensure the electronics remain within safe operating limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $330.00
-65%$330.00
$115.50Resideo ZD26X10TZ Damper
The Resideo ZD26X10TZ Damper is a professional-grade, rectangular zone damper designed for high-performance HVAC zoning systems. Built with a parallel blade design and extruded aluminum frame, this unit ensures low leakage performance (less than 1% at 0.5 in. WC) in demanding heating and cooling applications. The 24Vac synchronous motor is side-mounted on the 10-inch dimension, featuring a power closed/spring return open configuration. This normally open damper orientation is a fail-safe standard for many Honeywell TrueZONE and forced air zoning setups, ensuring airflow is maintained if power is lost. Installation is streamlined with a simple two-wire connection (M1 and M6 terminals) and a 90-degree angular rotation. Rated for static pressures up to 1 in. WC, the ZD26X10TZ provides a quiet operation and reliable mechanical visual position indication, making it a staple for contractors looking for dependable hvac air flow control without the need for complex mounting hardware.
- Parallel Blade Performance: Engineered for maximum efficiency and minimal bypass when pressurized in the closed position.
- Fail-Safe Logic: The spring return open motor ensures essential air circulation continues even during power interruptions.
- Contractor-Friendly Install: Features a slip-in design with simplified range stops and a two-wire motor that integrates directly with zone control boards.
- Durable Construction: Heavy-duty extruded aluminum frame resists corrosion and maintains integrity in high-static environments.
Common Questions
Is the motor replaceable without changing the entire damper?
Yes, the M847D-ZONE motor can be swapped out by loosening the Allen set screw, allowing for field repairs without breaking into the ductwork.
What is the typical timing for opening and closing?
The synchronous motor typically takes 30 seconds to power closed and returns to the open position via spring in approximately 10 seconds.
Can this damper be used in high-temperature plenums?
The unit is rated for ambient temperatures up to 140°F, and it is recommended to install it at least three feet from the furnace plenum to ensure the electronics remain within safe operating limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
