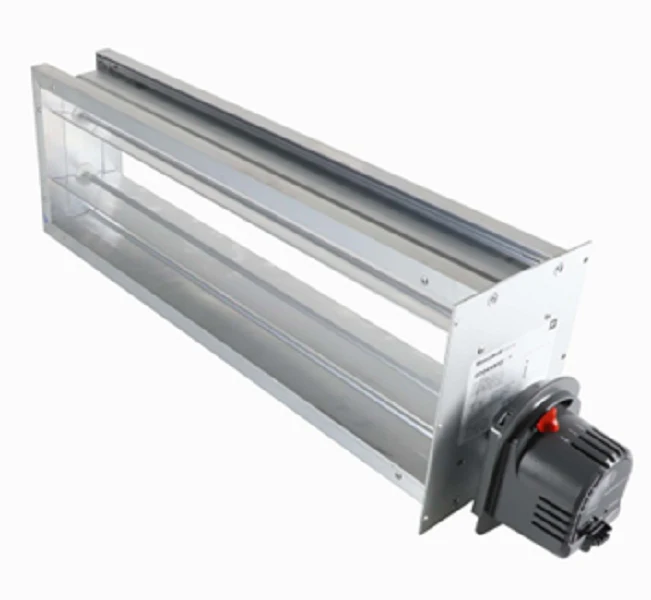

Resideo ZD24X8TZ Damper
The Resideo ZD24X8TZ Damper is a 24" Wide x 8" High rectangular parallel blade zone damper engineered for precise airflow management in forced-air zoning applications. This high-torque, 24Vac motorized damper features an extruded aluminum frame and parallel-acting blades, designed for low-leakage performance and high static pressure environments up to 1.0 in. w.c. The TrueZONE ZD series utilizes a power closed/spring return open operation (normally open), ensuring a fail-safe open position during power loss to maintain system circulation and prevent equipment high-limit trips. Built for professional installation, the synchronous motor is mounted on the 8" side of the unit, and the two-position actuator provides a visible mechanical indicator for real-time positioning status. This HVAC zone control damper is fully compatible with Honeywell Home TrueZONE panels and other standard 24-volt electronic zoning systems, making it a reliable solution for multi-zone residential and light commercial HVAC setups.
- Extruded Aluminum Construction: Features a rugged, corrosion-resistant frame and parallel blades for long-term durability in high-cycle environments.
- Fail-Safe Normally Open Logic: Power close/spring return design ensures constant air passage in the event of a total electrical failure.
- Superior Blade Sealing: Parallel blade configuration optimizes airflow control with minimal bypass leakage compared to standard dampers.
- Integrated Position Indicator: Provides a clear mechanical visual indicator on the actuator, allowing technicians to verify damper status at a glance.
- Universal System Integration: Designed for seamless interface with HZ311, HZ322, or HZ432 TrueZONE panels using standard two-wire 24V wiring.
Common Questions
Can the ZD24X8TZ be installed in any orientation?
Yes, the ZD parallel blade damper is designed for flexible installation; it can be mounted with the motor on the side or the top/bottom of the ductwork depending on clearance and accessibility needs.
Which control panels are compatible with this 24V damper?
This Honeywell Home ZD series damper is an industry-standard 2-wire component. While optimized for Resideo TrueZONE panels, it is compatible with most third-party zone controllers providing a constant 24Vac signal to close and relying on the spring return to open.
What is the difference between parallel and opposed blade action for these units?
Parallel blades, as found in the ZD24X8TZ, pivot in the same direction, which is typically preferred for two-position zoning (fully open or fully closed) to maximize airflow efficiency across the 24x8 duct section.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
