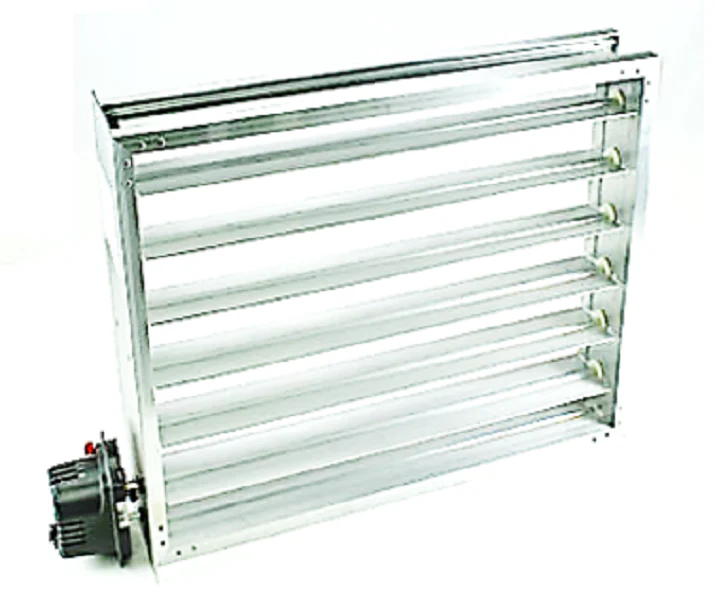

Resideo ZD24X18TZ Damper
The Resideo ZD24X18TZ is a professional-grade parallel blade zone damper engineered for precision airflow management in Honeywell TrueZONE and other electronic zoning systems. Built with heavy-gauge galvanized steel and an extruded aluminum frame, this rectangular unit measures 24 inches wide by 18 inches high. It features a reliable 24Vac synchronous motor mounted on the 18-inch side, facilitating a power closed/spring return open configuration. Designed for fail-safe operation, the normally open damper ensures ventilation remains active during power loss. The two-position damper mechanism utilizes a dual-wire installation with M1 (Power) and M6 (Common) terminals, plus an optional M4 terminal for LED status. With an integrated mechanical visual position indicator, technicians can verify blade status at a glance. The low-leakage technology ensures maximum energy efficiency and optimal pressure control within the ductwork, making it a staple for high-performance residential and light commercial HVAC zoning solutions.
Key Benefits- Fail-Safe Reliability: The spring-return mechanism defaults to an open position, protecting the system from static pressure spikes if power is lost.
- Refined Airflow Control: Parallel blade design and solid aluminum construction provide superior low-leakage performance for precise temperature regulation.
- Fast Installation: Simplified two-wire motor connection and side-mounted actuator streamline HVAC ductwork damper integration for contractors.
- Visual Diagnostics: Includes a built-in position indicator to monitor damper status without dismantling the duct assembly.
- What is the default motor orientation? The motor is factory-mounted on the 18-inch side. It is designed as a power-closed, spring-return open unit.
- Is this compatible with different zoning boards? Yes, it is optimized for Honeywell TrueZONE systems but works with most 24V electronic zoning panels.
- Can it be installed in any position? Yes, the damper and synchronous motor assembly are rated for installation in any orientation within the ductwork.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
