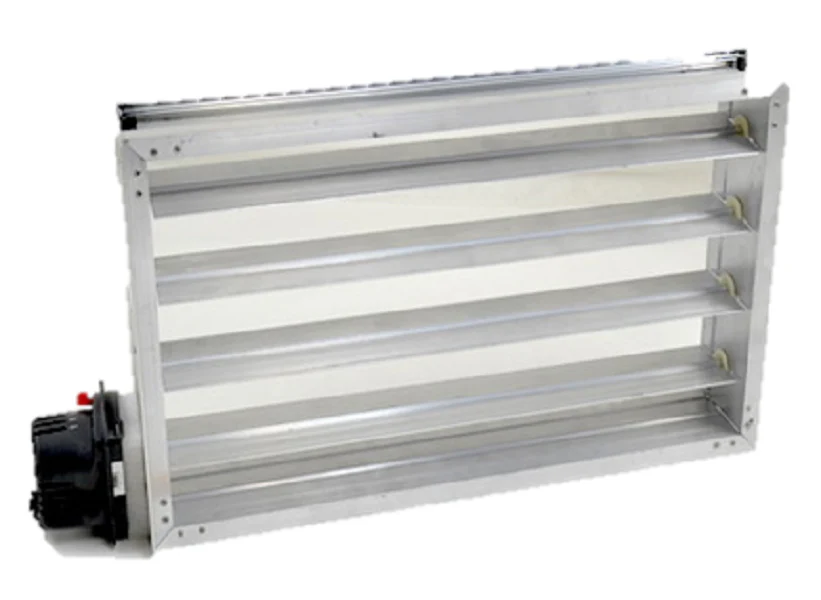

Resideo ZD24X14TZ Damper
The Resideo ZD24X14TZ Damper is a professional-grade 24x14 zone damper engineered for tight air management within residential and light commercial forced-air systems. As a parallel blade zone damper, it features high-quality extruded aluminum construction and Kevlar gearing to ensure smooth operation and minimal air bypass. This model utilizes a 24Vac synchronous motor mounted on the 14-inch side, offering a power closed spring return open configuration. It is a reliable fail-safe solution that remains open during power loss to prevent equipment high-limit trips. Built for seamless integration with TrueZONE panels and other 24V HVAC zoning systems, the ZD24X14TZ provides a 30-second power closing cycle and a 10-second spring return. The motor includes a mechanical visual position indicator and adjustable range stops for precise airflow balancing. Designed for flexible installation, this rectangular HVAC damper can be mounted in any orientation, making it a staple for contractors looking for long-term reliability in custom ductwork.
- Fail-Safe Operation: The normally open spring return design ensures airflow continues if power is interrupted, protecting the heat exchanger.
- Durable Construction: Built with an extruded aluminum frame and blades for superior corrosion resistance and structural integrity.
- Low Leakage Design: Parallel blade action ensures a tight seal when closed, maximizing the efficiency of individual zones.
- Simplified Installation: Features easy-to-wire terminals (M1, M6, M4) and an HVAC damper motor that can be mounted in any position.
Common Questions:
Can the motor be swapped for a power-open/spring-closed configuration?
No, the ZD24X14TZ is specifically engineered as a power-closed/spring-return-open unit. For different logic, a different ZD series sub-model must be selected to match the system's wiring requirements.
Is this damper compatible with non-Honeywell/Resideo zone boards?
Yes, as long as the control board provides a standard 24Vac signal and supports two-wire or three-wire (for LED) connections, it is compatible with most HVAC zoning systems.
How do I verify if the damper is fully closed?
The actuator features a built-in mechanical visual position indicator and an optional M4 terminal for remote LED status monitoring.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
