Resideo ZD24X10TZ Damper

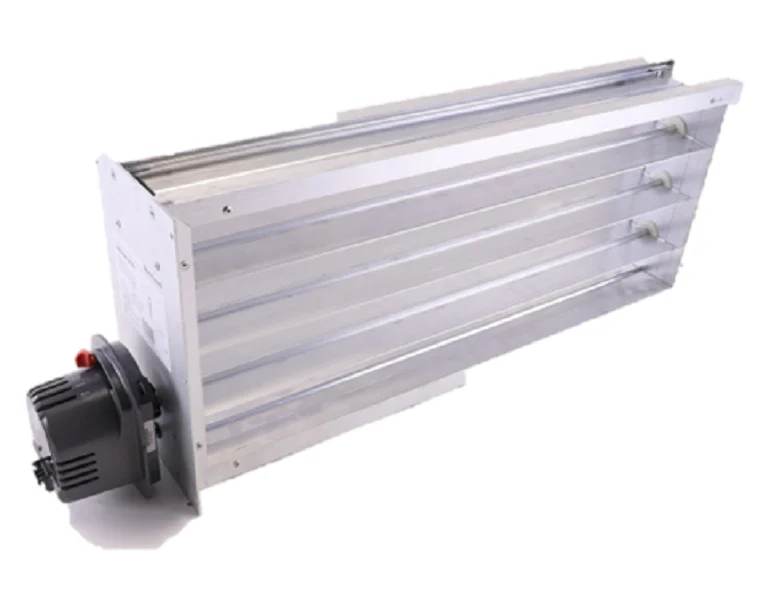

The Resideo ZD24X10TZ is a heavy-duty 24" x 10" parallel blade zone damper engineered for precise airflow management in high-static residential and light commercial forced-air systems. This rectangular zone damper utilizes a synchronous 24VAC motor with a power closed/spring return open (fail-safe) configuration, ensuring optimal ventilation even during power loss. Built with a rugged extruded aluminum frame and parallel blades, this unit is designed to minimize leakage to less than 1% at 0.5 in. WC, significantly improving system efficiency. The motor is side-mounted on the 10-inch dimension and features Kevlar gearing for extended cycle life. Integration is straightforward via a two-wire installation (M1 and M6 terminals), with an optional M4 terminal for LED position indication. Veteran contractors rely on the TrueZONE compatibility and adjustable range stops to fine-tune static pressure and balance multi-zone HVACR layouts accurately.
Key Benefits- Fail-Safe Operation: The spring return open motor ensures air passages remain clear in the event of a control power failure.
- Enhanced Durability: Features Kevlar-reinforced gearing and a corrosion-resistant extruded aluminum construction for long-term reliability in harsh duct environments.
- Minimal Air Bypass: The parallel blade design provides a tight seal, rated for systems operating up to 1.0 in. WC.
- Simplified Commissioning: Includes a mechanical visual position indicator and simplified range stops for quick field adjustments.
- Quiet Performance: The synchronous motor offers smooth, high-torque operation (71 in-oz) while minimizing mechanical noise during transitions.
Is the motor field-replaceable?
Yes, the 24V synchronous motor can be replaced or serviced without removing the entire damper frame from the ductwork.
Can this damper be used for fresh air intake?
This specific ZD series damper is configured as power-closed/spring-open. For fresh air applications requiring a power-open/spring-closed setup, verify compatibility with the EARD series or field-convertible actuators.
What are the wiring requirements?
The ZD24X10TZ operates on a standard 24VAC signal, requiring only two wires to the motor. A third terminal (M4) is available if visual LED monitoring is required at the zone panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $250.89
-65%$250.89
$87.81Resideo ZD24X10TZ Damper
The Resideo ZD24X10TZ is a heavy-duty 24" x 10" parallel blade zone damper engineered for precise airflow management in high-static residential and light commercial forced-air systems. This rectangular zone damper utilizes a synchronous 24VAC motor with a power closed/spring return open (fail-safe) configuration, ensuring optimal ventilation even during power loss. Built with a rugged extruded aluminum frame and parallel blades, this unit is designed to minimize leakage to less than 1% at 0.5 in. WC, significantly improving system efficiency. The motor is side-mounted on the 10-inch dimension and features Kevlar gearing for extended cycle life. Integration is straightforward via a two-wire installation (M1 and M6 terminals), with an optional M4 terminal for LED position indication. Veteran contractors rely on the TrueZONE compatibility and adjustable range stops to fine-tune static pressure and balance multi-zone HVACR layouts accurately.
Key Benefits- Fail-Safe Operation: The spring return open motor ensures air passages remain clear in the event of a control power failure.
- Enhanced Durability: Features Kevlar-reinforced gearing and a corrosion-resistant extruded aluminum construction for long-term reliability in harsh duct environments.
- Minimal Air Bypass: The parallel blade design provides a tight seal, rated for systems operating up to 1.0 in. WC.
- Simplified Commissioning: Includes a mechanical visual position indicator and simplified range stops for quick field adjustments.
- Quiet Performance: The synchronous motor offers smooth, high-torque operation (71 in-oz) while minimizing mechanical noise during transitions.
Is the motor field-replaceable?
Yes, the 24V synchronous motor can be replaced or serviced without removing the entire damper frame from the ductwork.
Can this damper be used for fresh air intake?
This specific ZD series damper is configured as power-closed/spring-open. For fresh air applications requiring a power-open/spring-closed setup, verify compatibility with the EARD series or field-convertible actuators.
What are the wiring requirements?
The ZD24X10TZ operates on a standard 24VAC signal, requiring only two wires to the motor. A third terminal (M4) is available if visual LED monitoring is required at the zone panel.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
