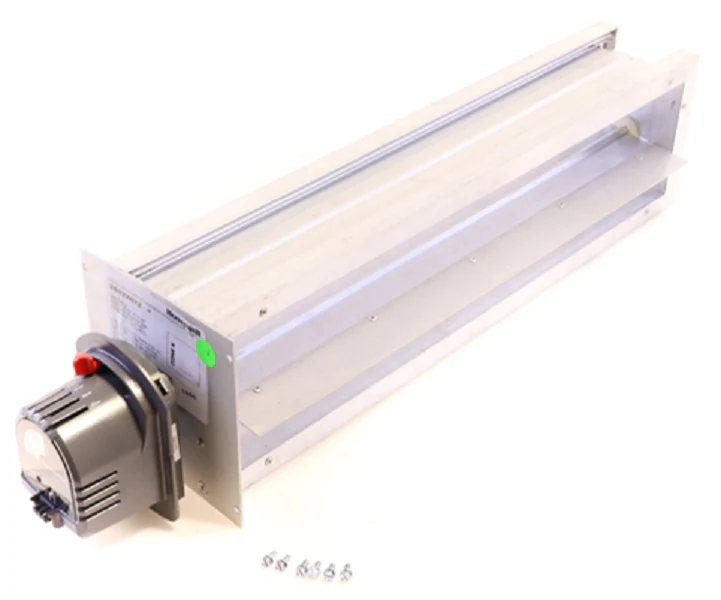

Resideo ZD22X6TZ Damper
The Resideo ZD22X6TZ is a high-performance 22" Wide X 6" High Parallel Blade Zone Damper designed for contractors who require precise airflow management in multizone HVAC systems. Built with a rugged extruded aluminum frame and blades, this rectangular damper features Kevlar gearing that significantly reduces mechanical wear compared to standard plastic gears. The integrated 24Vac synchronous motor is mounted on the 6" side, providing a Power Closed/Spring Return Open (normally open) fail-safe operation. This ensures maximum ventilation if control power is lost. Optimized for Honeywell TrueZONE and other networked zoning panels, the unit supports a simple two-wire installation with a manual range stop adjustment to fine-tune minimum and maximum blade positions. A mechanical visual position indicator allows for quick status checks during system commissioning, while the parallel blade design ensures low leakage performance and quiet operation, making it ideal for high-static residential and commercial ductwork.
Key Benefits- Enhanced Durability: Engineered with all-metal gears and Kevlar components to handle high-cycle applications without failure.
- Fail-Safe Ventilation: The spring return open configuration provides a default open state for occupant comfort during power interruptions.
- Installation Flexibility: The synchronous motor is side-mounted for easier access in tight 22x6 duct runs, supporting any mounting orientation.
- Precise Airflow Control: Features adjustable mechanical stops to limit blade travel, preventing whistling and balancing static pressure.
- System Compatibility: Fully compatible with Resideo TrueZONE panels and conventional 24V zoning systems for seamless integration.
How do I wire the ZD22X6TZ if I need a closed-position LED?
While the standard setup is a simple two-wire installation using M1 (Power) and M6 (Common), you can utilize the M4 terminal for optional LED indication at the zone panel or thermostat to verify the damper is fully closed.
Can the motor be moved to the 22-inch side?
No, the ZD22X6TZ is specifically factory-ordered with the motor mounted on the 6-inch side (Dimension 2). For applications requiring the actuator on the 22-inch side, you would need to specify a ZD6x22 model.
Is this damper suitable for high-static systems?
Yes, the parallel blade action and extruded aluminum blades are designed to maintain structural integrity and minimize bypass leakage even under the increased pressures found in restricted duct zones.
