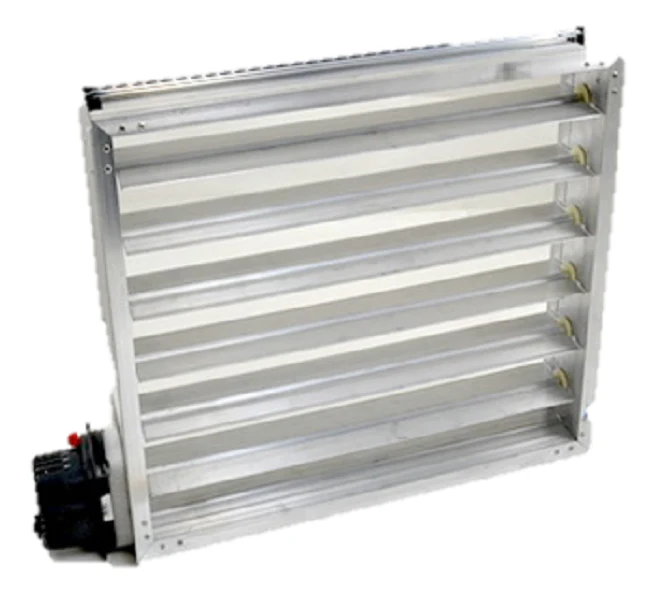

Resideo ZD22X18TZ Damper
The Resideo ZD22X18TZ is a professional-grade parallel blade zone damper designed for precision airflow control in multi-zone HVAC systems. Constructed with a heavy-duty galvanized steel frame, this 22" W x 18" H unit utilizes a synchronous motor mounted on the 18-inch side for reliable operation under high static pressure conditions. As a power closed spring return open model, it ensures air delivery remains uninhibited in the event of a power loss, providing a critical fail-safe for residential and light commercial applications. The 24Vac two-position actuator integrates seamlessly with most standard zoning panels, while the parallel blade configuration minimizes turbulence and optimizes HVAC duct airflow. Synthetic blade bushings and a perimeter gasket system reduce mechanical wear and bypass leakage, ensuring the forced air zoning system maintains high static efficiency. This HVAC zone damper installation provides technicians with a robust solution for balancing thermal loads and improving equipment duty cycles.
Key Benefits
- Fail-Safe Operation: The two-wire, power closed/spring return open configuration ensures the zone remains open if power is interrupted.
- Enhanced Durability: Features a rugged galvanized steel construction and reliable motor housing for long-term service life in unconditioned spaces.
- Efficient Airflow Management: The parallel blade design provides consistent pressure across the damper face, reducing duct whistle and air turbulence.
- Standard Compatibility: Operates on a standard 24Vac circuit, making it compatible with Resideo, Honeywell Home, and third-party zoning controllers.
Common Questions
Can the synchronous motor be replaced without removing the damper from the ductwork?
Yes, the motor assembly on the ZD22X18TZ is designed for field serviceability, allowing for direct replacement to minimize downtime.
Is this damper suitable for high-velocity systems?
While designed for standard residential and light commercial static pressures, its robust frame and reinforced transition points make it suitable for most standard velocity forced air systems.
How do I confirm the orientation for the 18-inch side mount?
The motor is factory-mounted on the 18-inch dimension; ensure your plenum or duct transition provides sufficient clearance for the actuator housing on that specific side.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
