Resideo ZD22X14TZ Damper

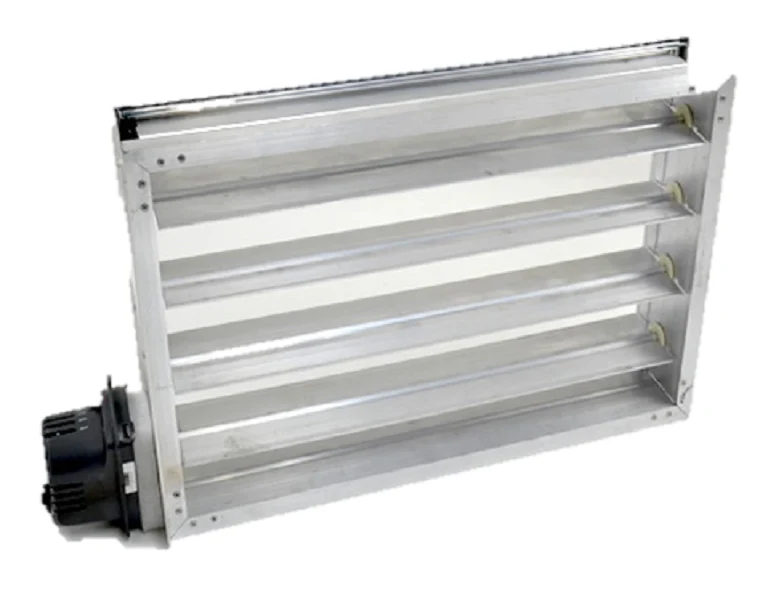

The Resideo ZD22X14TZ is a professional-grade parallel blade zone damper engineered for precise airflow control in residential and light commercial forced-air systems. Constructed with a heavy-duty extruded aluminum frame and blades, this 22" x 14" rectangular unit is built for long-term reliability and high-performance sealing. It features a 24Vac synchronous motor mounted on the 14-inch side, operating as a power closed/spring return open (normally open) component. This makes it an ideal fail-safe choice for critical zones that require cooling or ventilation during power loss. With less than 1% leakage at 0.5 in. WC, the ZD22X14TZ ensures tight shut-off and optimal energy efficiency.
Designed for seamless integration with Honeywell TrueZONE and other electronic zoning panels, this forced air zoning damper utilizes a simple two-wire installation with an optional third terminal for LED position indication. The actuator provides a robust 71 in-oz torque, ensuring smooth 90-degree blade rotation even in high-static environments up to 1.0 in. WC. Technical professionals will appreciate the adjustable range stops, which allow for manual customization of the closed position to meet specific balancing requirements of any HVAC system.
- Efficient Parallel Blade Operation: Precision-engineered aluminum blades minimize static pressure drop and air turbulence.
- Fail-Safe Design: Synchronous motor defaults to the open position upon loss of power, maintaining system airflow.
- Low Leakage Performance: Extruded blade seals provide a superior seal, keeping leakage under 1% at standard operating pressures.
- Easy Installation: Features push-terminal electrical connections and a universal mounting design for side or top duct placement.
- Visual Status Verification: Includes a mechanical position indicator and LED compatibility to verify damper state at a glance.
Common Questions
Can this damper be used for fresh air intake?
No, because this model is power closed/spring return open, it would fail to the open position if power is lost. For fresh air or combustion air applications requiring a fail-closed setup, use the EARD series or a power-open model.
How many dampers can be wired to a single zone?
Multiple ZD22X14TZ dampers can be wired in parallel. Ensure your transformer or zone panel can handle the 8 VA power requirement per motor.
Does the motor have to be mounted in a specific orientation?
The damper can be installed in any orientation, provided the motor is located on the side or top of the duct. Avoid mounting the motor on the bottom to prevent condensation or debris from affecting the internal gears.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $320.92
-65%$320.92
$112.32Resideo ZD22X14TZ Damper
The Resideo ZD22X14TZ is a professional-grade parallel blade zone damper engineered for precise airflow control in residential and light commercial forced-air systems. Constructed with a heavy-duty extruded aluminum frame and blades, this 22" x 14" rectangular unit is built for long-term reliability and high-performance sealing. It features a 24Vac synchronous motor mounted on the 14-inch side, operating as a power closed/spring return open (normally open) component. This makes it an ideal fail-safe choice for critical zones that require cooling or ventilation during power loss. With less than 1% leakage at 0.5 in. WC, the ZD22X14TZ ensures tight shut-off and optimal energy efficiency.
Designed for seamless integration with Honeywell TrueZONE and other electronic zoning panels, this forced air zoning damper utilizes a simple two-wire installation with an optional third terminal for LED position indication. The actuator provides a robust 71 in-oz torque, ensuring smooth 90-degree blade rotation even in high-static environments up to 1.0 in. WC. Technical professionals will appreciate the adjustable range stops, which allow for manual customization of the closed position to meet specific balancing requirements of any HVAC system.
- Efficient Parallel Blade Operation: Precision-engineered aluminum blades minimize static pressure drop and air turbulence.
- Fail-Safe Design: Synchronous motor defaults to the open position upon loss of power, maintaining system airflow.
- Low Leakage Performance: Extruded blade seals provide a superior seal, keeping leakage under 1% at standard operating pressures.
- Easy Installation: Features push-terminal electrical connections and a universal mounting design for side or top duct placement.
- Visual Status Verification: Includes a mechanical position indicator and LED compatibility to verify damper state at a glance.
Common Questions
Can this damper be used for fresh air intake?
No, because this model is power closed/spring return open, it would fail to the open position if power is lost. For fresh air or combustion air applications requiring a fail-closed setup, use the EARD series or a power-open model.
How many dampers can be wired to a single zone?
Multiple ZD22X14TZ dampers can be wired in parallel. Ensure your transformer or zone panel can handle the 8 VA power requirement per motor.
Does the motor have to be mounted in a specific orientation?
The damper can be installed in any orientation, provided the motor is located on the side or top of the duct. Avoid mounting the motor on the bottom to prevent condensation or debris from affecting the internal gears.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
