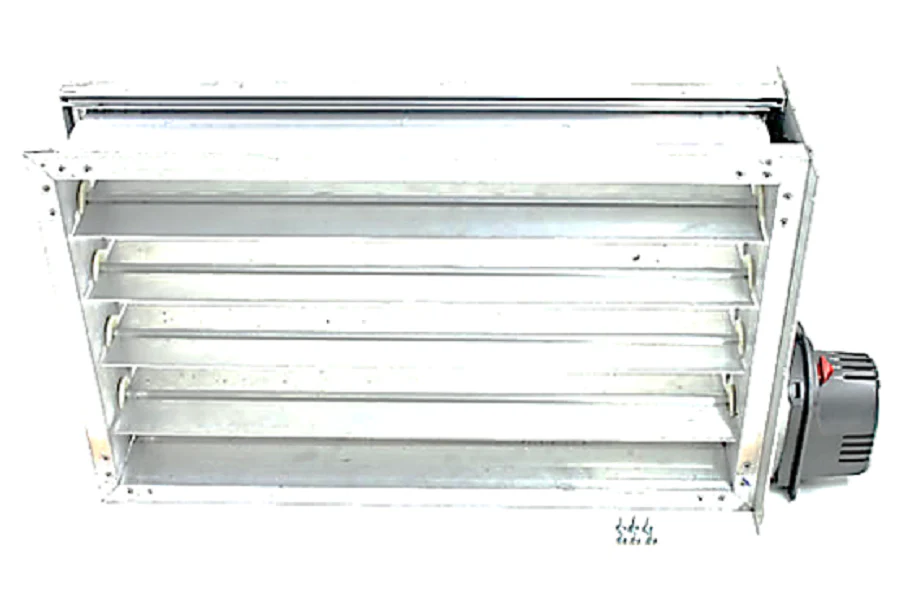

Resideo ZD22X12TZ Damper
The Resideo ZD22X12TZ Damper is a professional-grade 22" Wide X 12" High Parallel Blade Zone Damper engineered for high-static pressure applications. Built with a heavy-duty extruded aluminum frame and blades, this 24Vac zone damper features a Power Closed/Spring Return Open configuration, making it the ideal choice for systems requiring a fail-safe open position. The integrated synchronous motor is side-mounted on the 12-inch dimension, providing consistent 71 in-oz actuator torque for reliable blade positioning. Optimized for Honeywell Home TrueZONE systems, the ZD22X12TZ ensures less than 1% leakage at 0.5 in. WC, maximizing airflow efficiency across multi-zone residential and light commercial HVAC installations. This rectangular parallel blade damper utilizes Kevlar gearing for long-term mechanical durability and includes LED indicators for immediate visual confirmation of open and closed states.
Key Benefits for Contractors- High-Performance Seals: Designed for low-leakage performance to ensure precise temperature control in every zone.
- Fail-Safe Operation: The spring-return open mechanism ensures maximum airflow remains available even during power loss.
- Robust Gearing: Features premium Kevlar reinforced gearing for reduced wear in high-cycle environments.
- Universal Compatibility: Seamlessly integrates with Honeywell TrueZONE panels and other standard 24V zoning systems.
- Installation Flexibility: Includes adjustable range stops to fine-tune minimum and maximum blade positions.
Is the motor replaceable without removing the damper?
Yes, the synchronous motor is designed for field replacement to minimize system downtime.
Can this damper be installed in any orientation?
The ZD22X12TZ is engineered to function reliably in any mounting position within the ductwork.
How many wires are required for the installation?
This is a standard 2-wire setup (24Vac) for power closed operation, utilizing the internal spring for the return stroke.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
