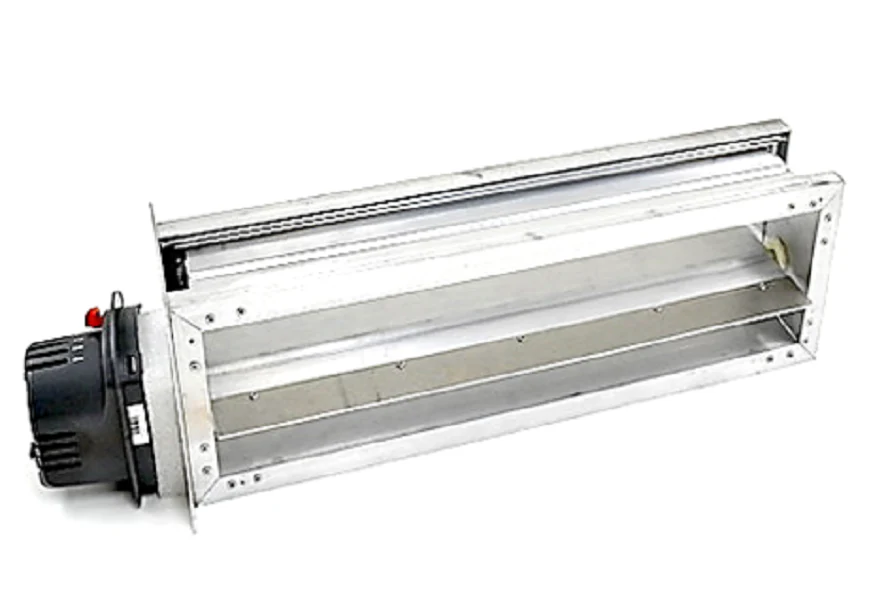

Resideo ZD20X6TZ Damper
The Resideo ZD20X6TZ is a professional-grade 20x6 zone damper engineered for precise airflow management in multizone forced-air systems. This rectangular parallel blade damper features an extruded aluminum frame and blades, ensuring a rigid construction that prevents bowing under high static pressure. Operating on a 24Vac synchronous motor, the unit utilizes a power closed spring return open configuration, making it the industry standard for normally open damper applications. The parallel blade configuration minimizes air bypass when sealed, while the integrated mechanical visual position indicator allows technicians to verify damper status at a glance. Designed for seamless integration with TrueZONE panels and other networked zoning controllers, the ZD20X6TZ includes adjustable range stops for fine-tuning CFM delivery. The motor is side-mounted on the 6-inch dimension, providing a compact footprint for tight plenum or trunk installations. This motorized HVAC damper is built for long-term service in demanding residential and light commercial environments.
Key Benefits- Extruded Aluminum Construction: Offers superior corrosion resistance and structural integrity compared to galvanized steel alternatives.
- Fail-Safe Operation: The spring return open logic ensures full airflow in the event of a power loss, protecting the heat exchanger from overheating.
- Low Leakage Design: Parallel blades provide a tight seal to maximize efficiency in unoccupied zones.
- Simplified Wiring: Features easy-to-access terminals (M1, M6, M4) for rapid zoning system installation.
- Adjustable Range Stops: Allows for manual adjustment of the minimum and maximum blade travel to balance airflow requirements.
Is this damper compatible with non-Honeywell zone panels?
Yes, the Resideo ZD20X6TZ is compatible with most 24V forced-air zone control panels that support power-closed/spring-open logic.
Can the actuator be mounted in different orientations?
The motor is pre-installed on the 6-inch side, but the damper assembly itself can be installed in any orientation within the ductwork without affecting the 24Vac synchronous motor performance.
What is the typical timing for blade travel?
The synchronous motor typically completes a power-close cycle in 30 seconds and utilizes a 10-second spring-return for opening.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $269.57
-65%$269.57
$94.35Resideo ZD20X6TZ Damper
The Resideo ZD20X6TZ is a professional-grade 20x6 zone damper engineered for precise airflow management in multizone forced-air systems. This rectangular parallel blade damper features an extruded aluminum frame and blades, ensuring a rigid construction that prevents bowing under high static pressure. Operating on a 24Vac synchronous motor, the unit utilizes a power closed spring return open configuration, making it the industry standard for normally open damper applications. The parallel blade configuration minimizes air bypass when sealed, while the integrated mechanical visual position indicator allows technicians to verify damper status at a glance. Designed for seamless integration with TrueZONE panels and other networked zoning controllers, the ZD20X6TZ includes adjustable range stops for fine-tuning CFM delivery. The motor is side-mounted on the 6-inch dimension, providing a compact footprint for tight plenum or trunk installations. This motorized HVAC damper is built for long-term service in demanding residential and light commercial environments.
Key Benefits- Extruded Aluminum Construction: Offers superior corrosion resistance and structural integrity compared to galvanized steel alternatives.
- Fail-Safe Operation: The spring return open logic ensures full airflow in the event of a power loss, protecting the heat exchanger from overheating.
- Low Leakage Design: Parallel blades provide a tight seal to maximize efficiency in unoccupied zones.
- Simplified Wiring: Features easy-to-access terminals (M1, M6, M4) for rapid zoning system installation.
- Adjustable Range Stops: Allows for manual adjustment of the minimum and maximum blade travel to balance airflow requirements.
Is this damper compatible with non-Honeywell zone panels?
Yes, the Resideo ZD20X6TZ is compatible with most 24V forced-air zone control panels that support power-closed/spring-open logic.
Can the actuator be mounted in different orientations?
The motor is pre-installed on the 6-inch side, but the damper assembly itself can be installed in any orientation within the ductwork without affecting the 24Vac synchronous motor performance.
What is the typical timing for blade travel?
The synchronous motor typically completes a power-close cycle in 30 seconds and utilizes a 10-second spring-return for opening.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
