Resideo ZD20X16TZ Damper

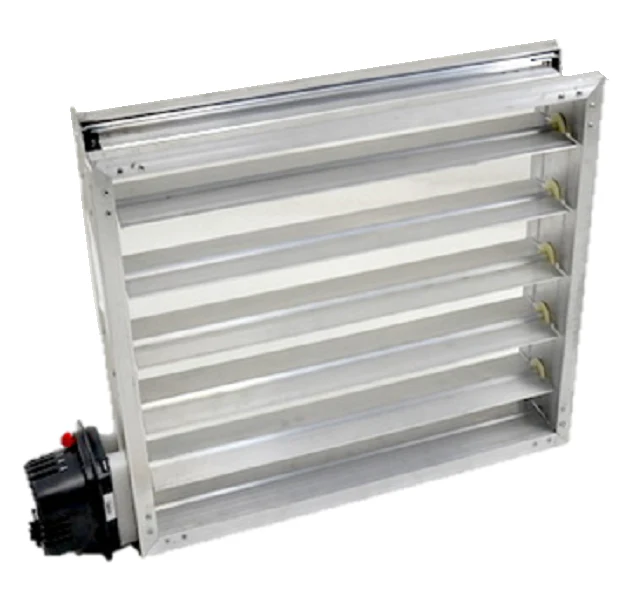

The Resideo ZD20X16TZ is a professional-grade rectangular zone damper engineered for tight airflow control in multizone forced-air systems. This 20x16 parallel blade damper utilizes a 24VAC synchronous motor mounted on the 16-inch side, featuring a power closed/spring return open configuration. Designed for fail-safe operation, it automatically reverts to the open position during power loss to ensure continuous ventilation. The assembly is constructed from high-quality extruded aluminum with stainless steel pressure rivets, providing the structural integrity required for high-velocity HVAC applications. It integrates seamlessly with Honeywell TrueZONE panels and other forced air zoning systems, utilizing a simple M1/M6 wiring terminal interface. With a 30-second power-close and 10-second spring-open timing, the ZD20X16TZ provides the reliable response times and low-leakage performance necessary for precision air distribution in residential and commercial ductwork.
Technical Benefits for the Contractor:
- Low Leakage Design: Parallel blade configuration and extruded aluminum frame ensure minimal air bypass when the zone is inactive.
- Fail-Safe Performance: The spring return open mechanical design acts as an insurance policy for airflow in the event of system power failures.
- High Compatibility: Fully compatible with Honeywell Home zoning systems and most 24V controllers via standard terminal connections.
- Field Durability: Solid aluminum construction resists corrosion and maintains alignment over the life of the HVAC system.
- Diagnostic Interface: Built-in visual position indicator allows for rapid troubleshooting during routine maintenance or system startups.
Common Questions:
Is the motor on the Resideo ZD20X16TZ replaceable?
Yes, the synchronous actuator can be replaced in the field without removing the entire damper frame from the ductwork, minimizing downtime during service calls.
Can this damper be installed in any orientation?
The ZD20X16TZ is designed for versatile installation; however, ensure the motor is accessible for wiring and visual inspection. The motor is factory-mounted on the 16-inch dimension side.
What wiring is required for this model?
This is a two-wire motor setup using M1 (Power) and M6 (Common) terminals. An optional M4 terminal is available for LED status indication if supported by your zoning panel.
This item is not eligible for free shipping.
