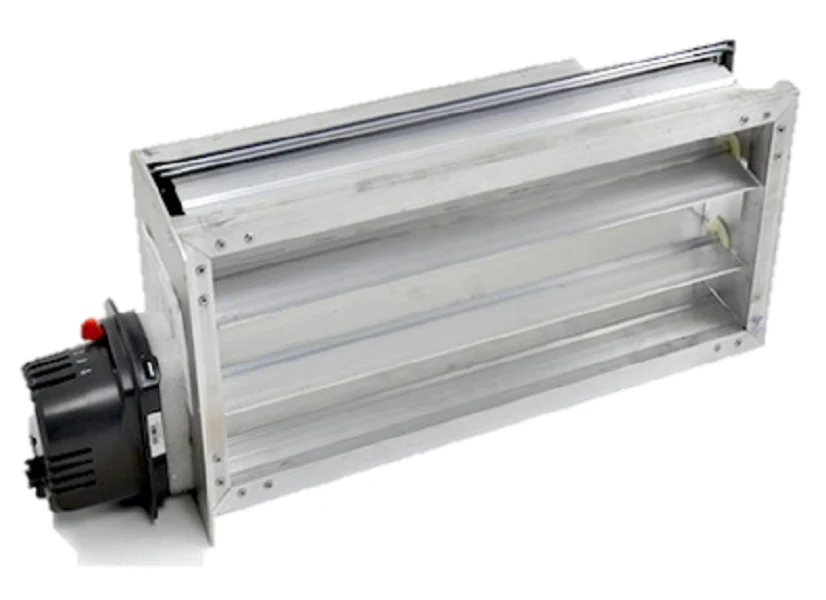

Resideo ZD18X8TZ Damper
The Resideo ZD18X8TZ is a high-performance 18x8 zone damper designed for precision airflow control in residential and commercial forced-air zoning systems. This parallel blade damper features a power closed spring return open configuration, ensuring fail-safe operation to the open position during power loss or system interruptions. Engineered for seamless integration with Honeywell Home zoning panels, the unit utilizes a robust 24VAC synchronous motor mounted on the 8-inch side. The ZD18X8TZ is constructed with heavy-duty galvanized steel, featuring corrugated blades and internal gaskets to minimize damper air leakage and improve static pressure management across the ductwork. For technicians performing a Resideo zone damper installation, the two-position actuator provides reliable HVAC airflow control, making it a staple for balancing multi-zone HVAC applications and resolving uneven temperature distribution issues in complex trunk lines.
- Universal Compatibility: Optimized for use with Resideo/Honeywell TrueZONE panels and other 24V control systems.
- Fail-Safe Engineering: The synchronous motor facilitates a power-closed cycle with a mechanical spring return for reliable air bypass.
- Durable Construction: Heavy-gauge galvanized steel frame and blades withstand high static pressures common in modern blowers.
- Field Efficiency: Side-mounted actuator design allows for streamlined installation in tight plenum spaces or joist runs.
Common Questions
How do I wire the ZD18X8TZ to a zoning panel?
This damper uses a standard two-wire 24VAC connection. Terminals are typically labeled M1 and M6 for power-closed operation from the zone controller.
Can the synchronous motor be replaced in the field?
Yes, the motor assembly is designed for field serviceability, allowing for quick removal and replacement without breaking into the ductwork.
What is the purpose of parallel blade movement on this model?
Parallel blades provide faster response and better airflow directional control for rectangular ducting, ensuring the branch duct is sealed or opened efficiently.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
